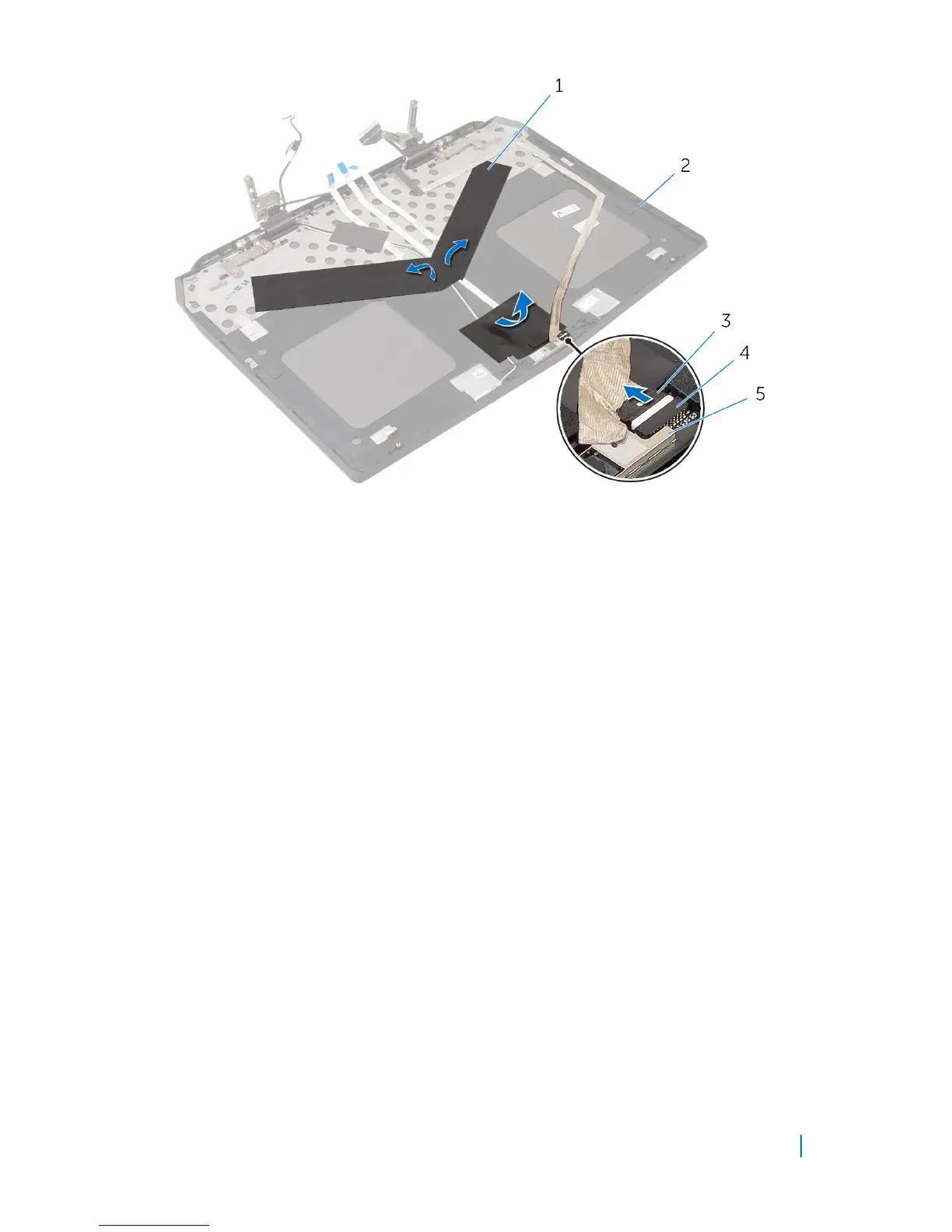

1 mylar 2 display back-cover

3 camera cable 4 connector

5 camera module

4 Lift the display-board cable and Alienware AlienHead LED board off the display

back-cover.

Removing the Alienware AlienHead LED board 134
