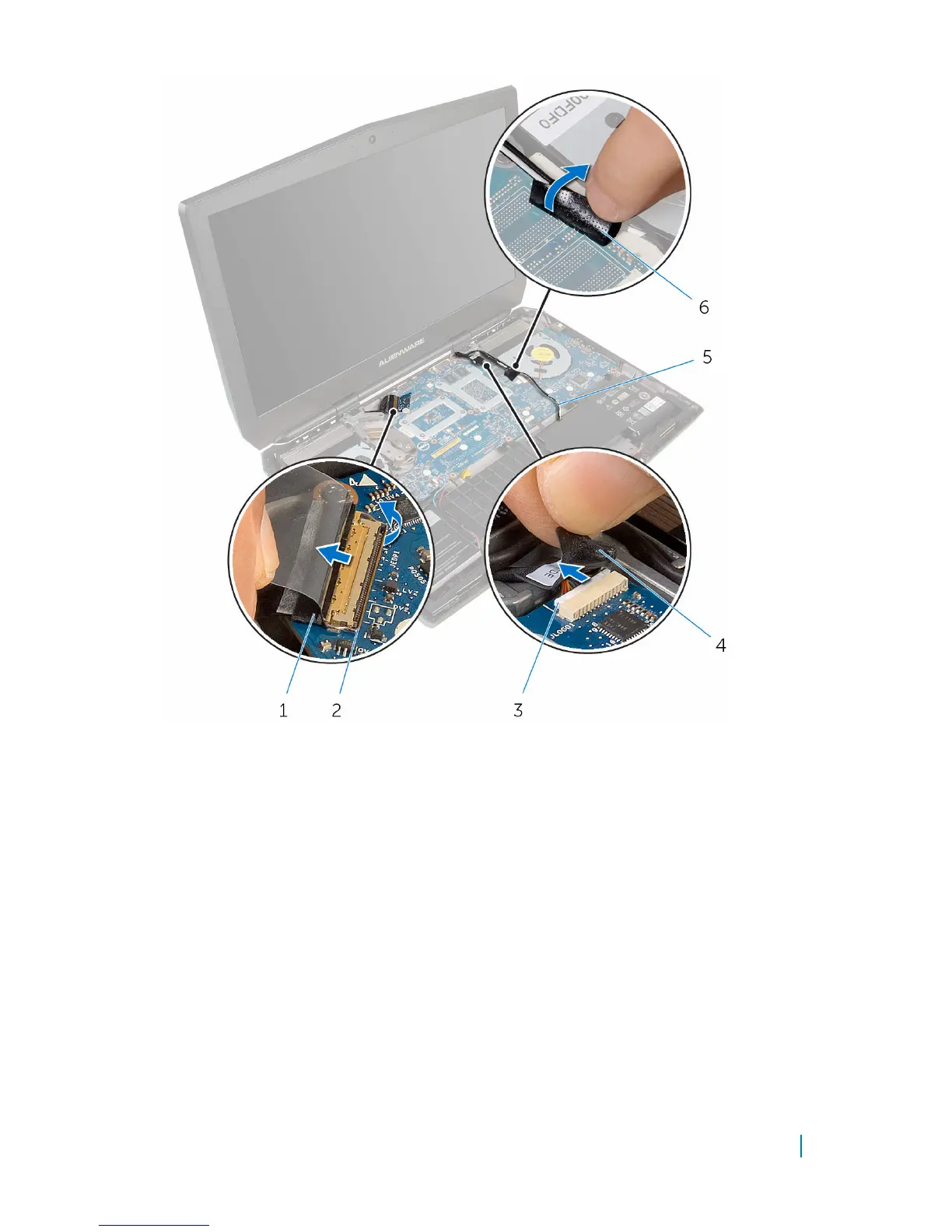

1 display cable 2 latch

3 connector 4 logo-board cable

5 antenna cables 6 tape

12 Remove the screws that secure the display assembly to the computer base.

13 Lift the display assembly off the computer base.

Removing the display assembly 57
