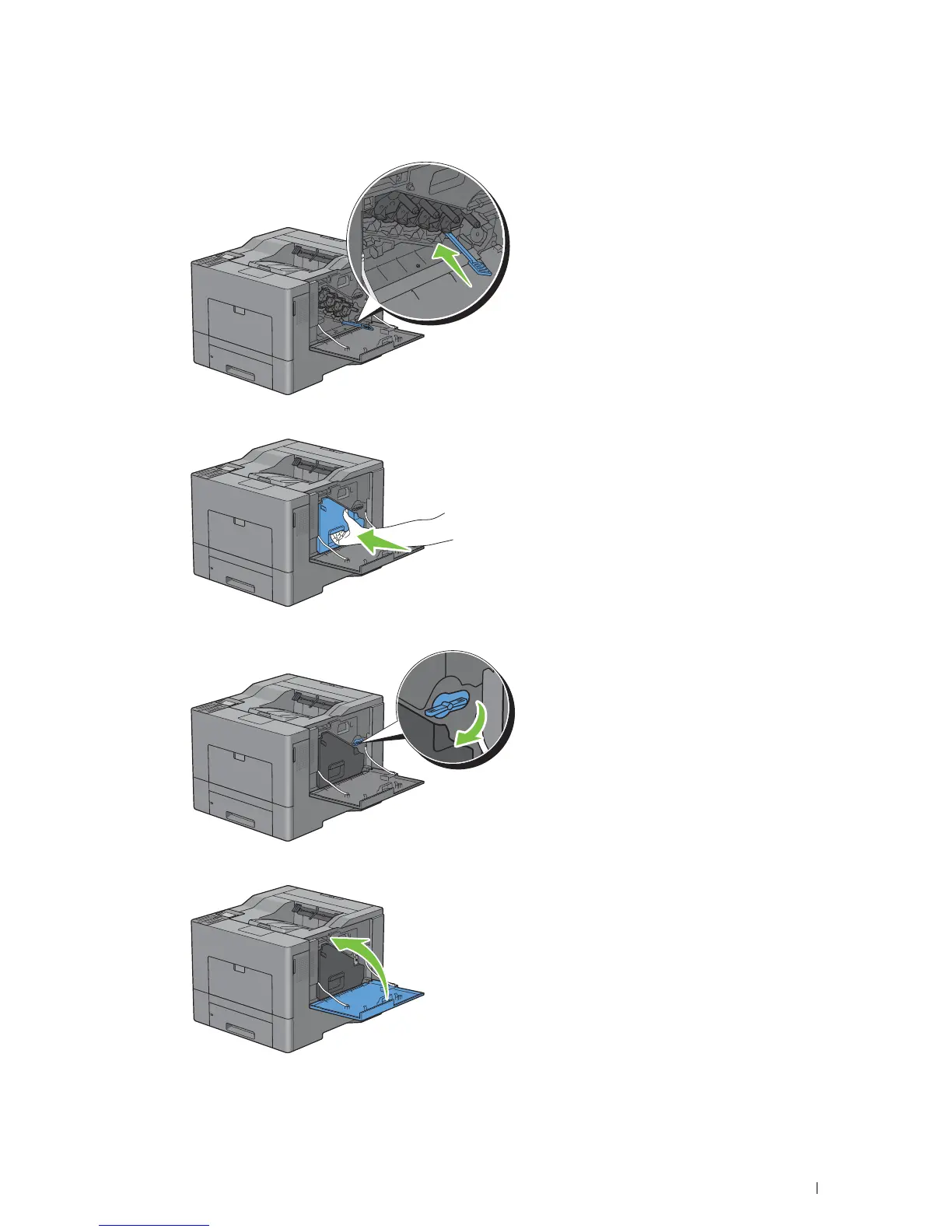

Return the cleaning rod to its original location.

9

Reinsert the removed waste toner box.

10

Turn the waste toner box lock lever 90-degrees clockwise to lock the waste toner box.

11

Close the right side cover.
