Dell OptiPlex Small Form Factor Plus 7020 User Manual

Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

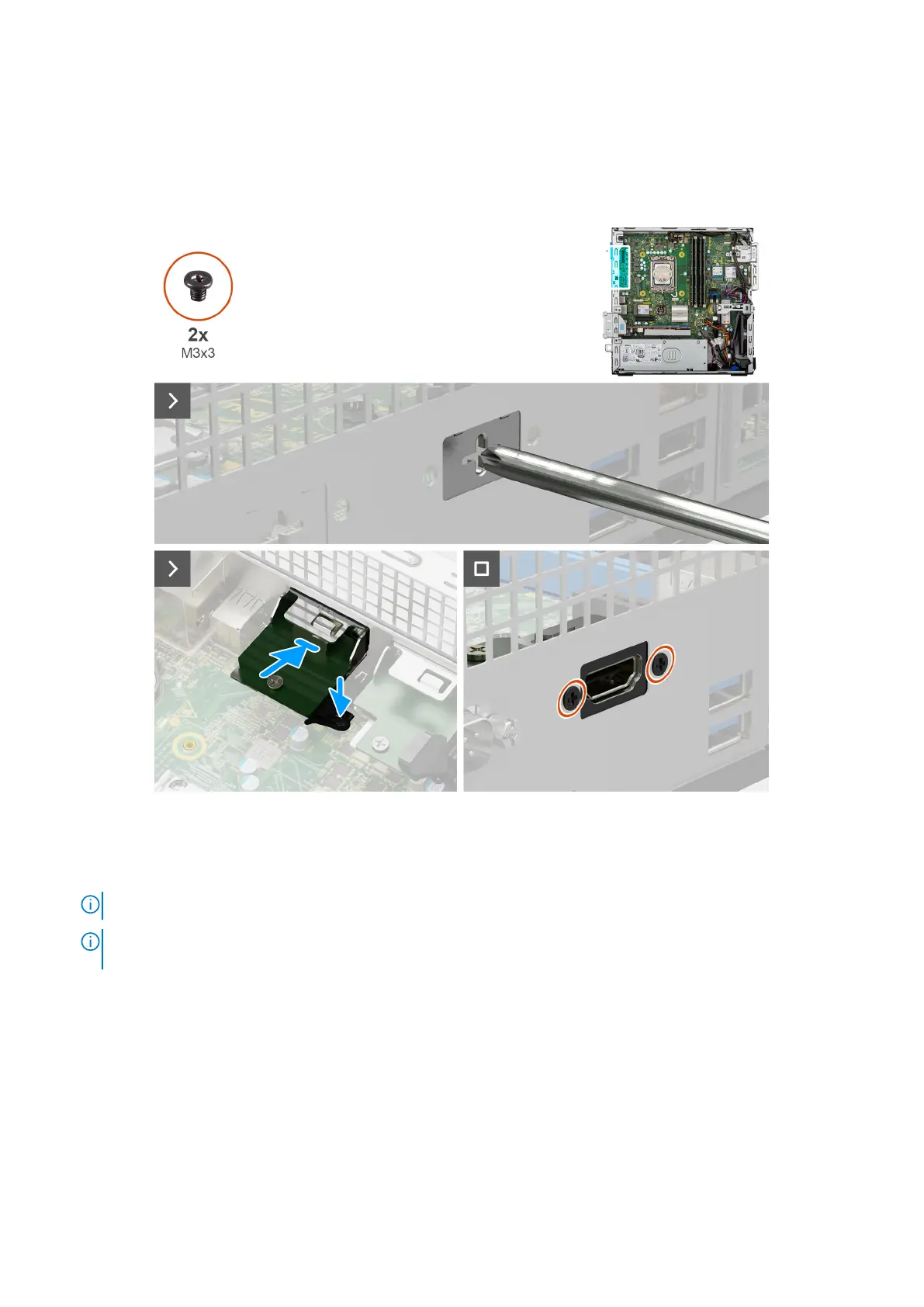

The following image indicates the location of the HDMI module and provides a visual representation of the installation procedure.
Figure 59. Installing the HDMI module
Steps
1. Using a screwdriver, remove the HDMI module cover from the chassis.
NOTE: This step is applicable only when the HDMI module is being installed for the first time.
NOTE: To remove the optional-module cover, insert a flat-head screwdriver in the hole of the cover, push the cover to
release it, and then lift the cover off the chassis .
2. Connect the HDMI-module cable to its connector (VIDEO) on the system board.
3. Insert the HDMI module into the slot on the chassis.
4. Replace the two screws (M3x3) that secure the HDMI module to the chassis.
Next steps
1. Install the processor fan and heat-sink assembly.
2. Install the disk-drive cage.
3. Install the 3.5-inch hard drive, if applicable.
4. Install the front bezel.
5. Install the side cover.
102
Removing and installing Field Replaceable Units (FRUs)

Dell OptiPlex Small Form Factor Plus 7020 Specifications

General

Operating System	Windows 11 Pro, Windows 11 Home
Memory	Up to 64 GB
Storage	Up to 2TB M.2 PCIe NVMe SSD
Graphics	Intel UHD Graphics 730 (i3), Intel UHD Graphics 770 (i5, i7, i9)
Ports (Front)	1 x USB 3.2 Gen 2x2 Type-C port
Ports (Rear)	2 x USB 2.0
Expansion Slots	1 x M.2 2230
Networking	Intel Wi-Fi 6E AX211, Bluetooth
Power Supply	260 W
Form Factor	Small Form Factor
