6. Follow the procedure in After working inside your computer.
DisplayPort module
Removing the DisplayPort module
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
4. Remove the 3.5-inch hard drive, if applicable.
5. Remove the disk-drive cage.
6. Remove the processor fan and heat-sink assembly.
About this task
The following image indicates the location of the DisplayPort module and provides a visual representation of the removal
procedure.

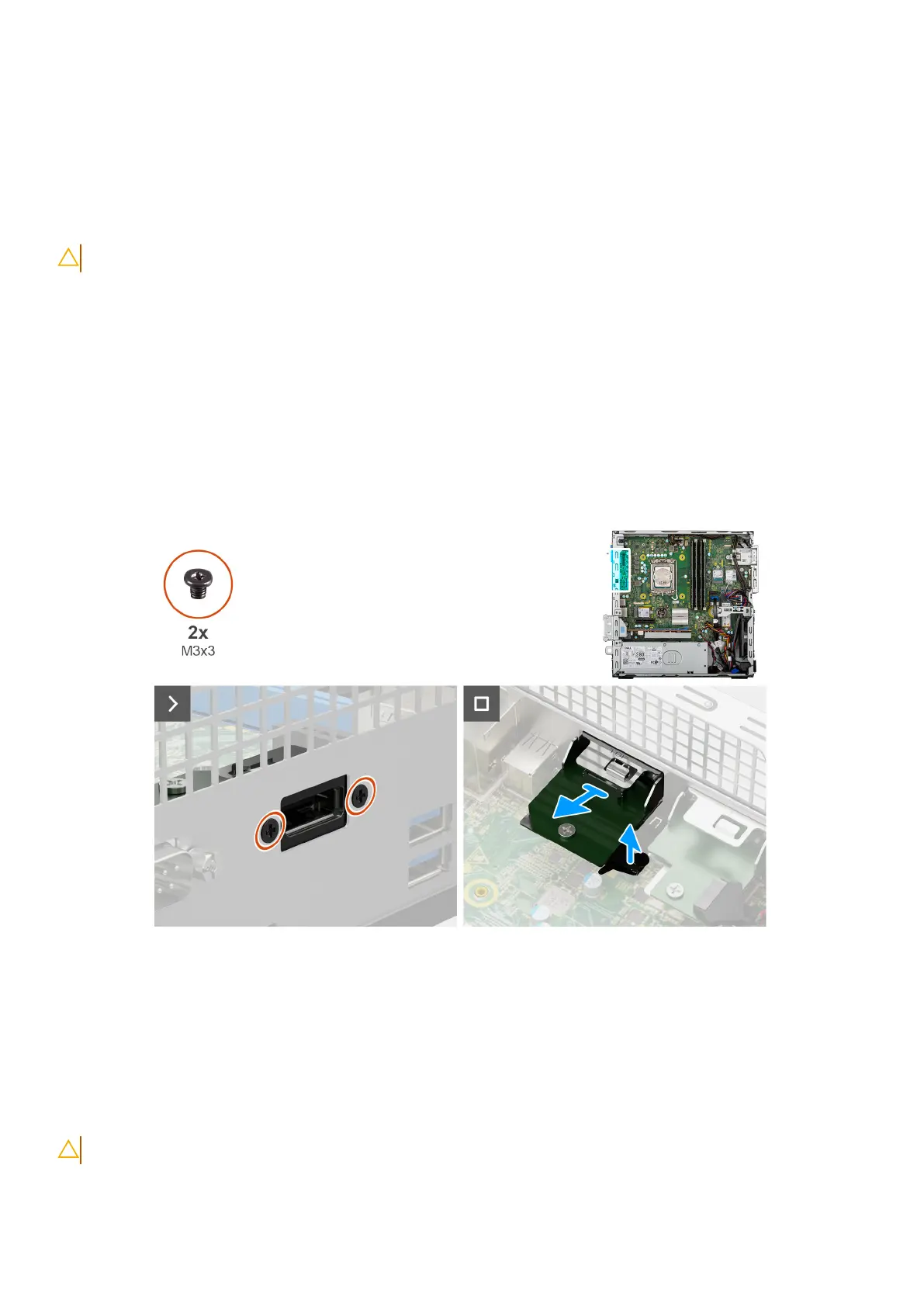

Figure 56. Removing the DisplayPort module
Steps
1. Remove the two screws (M3x3) that secure the DisplayPort module to the chassis.
2. Disconnect the DisplayPort-module cable from its connector (VIDEO) on the system board.
3. Lift the DisplayPort module off the system board.
Installing the DisplayPort module
CAUTION: The information in this removal section is intended for authorized service technicians only.
Removing and installing Field Replaceable Units (FRUs) 99
