Dell OptiPlex Small Form Factor Plus 7020 User Manual

Wireless card
Removing the wireless card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
4. Remove the 3.5-inch hard drive, if applicable.
5. Remove the disk-drive cage.
About this task
The following images indicate the location of the wireless card and provide a visual representation of the removal procedure.

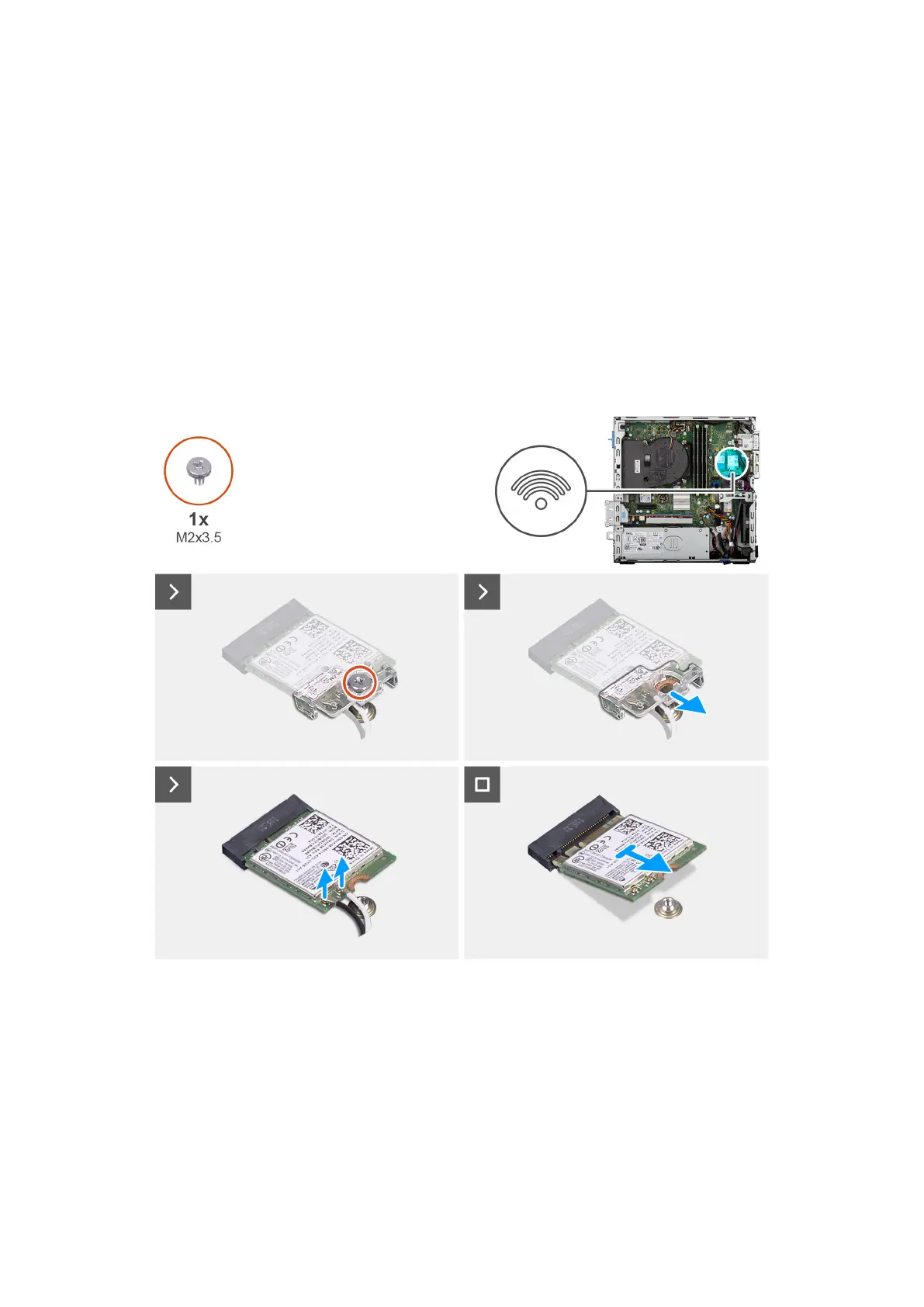

Figure 29. Removing the wireless card
Steps
1. Remove the screw (M2x3.5) that secures the wireless-card bracket to the system board.
2. Slide and lift the wireless-card bracket off the wireless card.
3. Disconnect the antenna cables from the wireless card.
4. Slide and remove the wireless card from the wireless-card slot (M.2 WLAN) on the system board.
Removing and installing Customer Replaceable Units (CRUs)
67

Dell OptiPlex Small Form Factor Plus 7020 Specifications

General

Brand	Dell
Model	OptiPlex Small Form Factor Plus 7020
Category	Desktop
Language	English
