Installing the wireless card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the wireless card and provide a visual representation of the installation procedure.

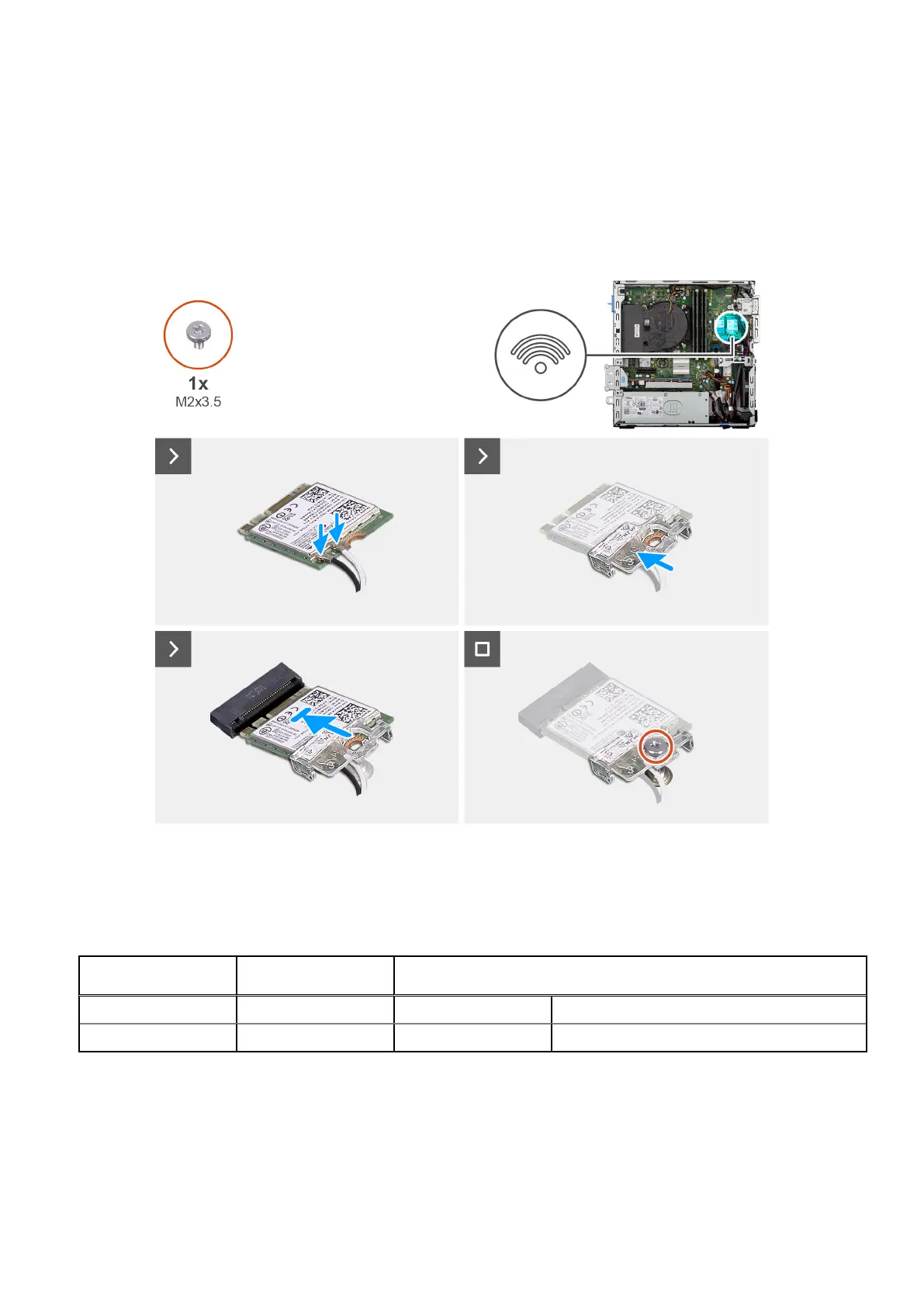

Figure 30. Installing the wireless card
Steps
1. Connect the antenna cables to the wireless card.
Table 28.
Antenna-cable color scheme
Connector on the
wireless card
Antenna-cable color Silkscreen marking
Main White MAIN △ (white triangle)
Auxiliary Black AUX ▲ (black triangle)
2. Place the wireless-card bracket on the wireless card.
3. Align the notch on the wireless card with the tab on the wireless-card slot (M.2 WLAN).
4. Slide the wireless card at an angle into the wireless-card slot (M.2 WLAN).
5. Replace the screw (M2x3.5) that secures the wireless-card bracket to the wireless card.
68
Removing and installing Customer Replaceable Units (CRUs)
