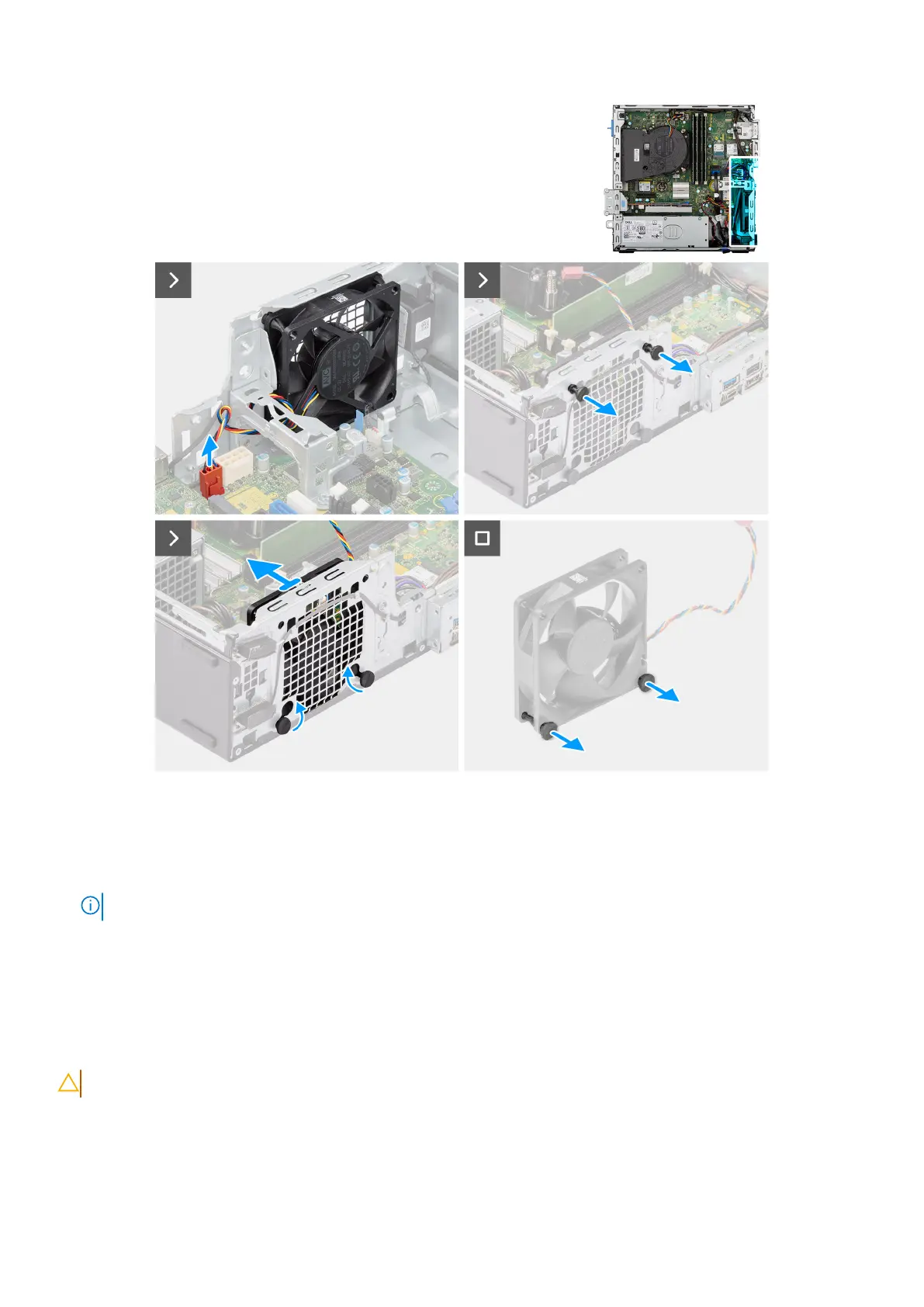

Figure 41. Removing the system fan
Steps
1. Disconnect the system-fan cable from its connector (FAN SYS) on the system board.
2. Gently pull the top two rubber grommets to release the fan from the chassis.
NOTE: The rubber grommets must be re-used during system fan replacement.
3. Slide and push the bottom rubber grommets inside the chassis through the holes on the chassis .
4. Remove the system fan off the chassis.
5. Gently pull the bottom two rubber grommets from the system fan.
Installing the system fan
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
80
Removing and installing Field Replaceable Units (FRUs)
