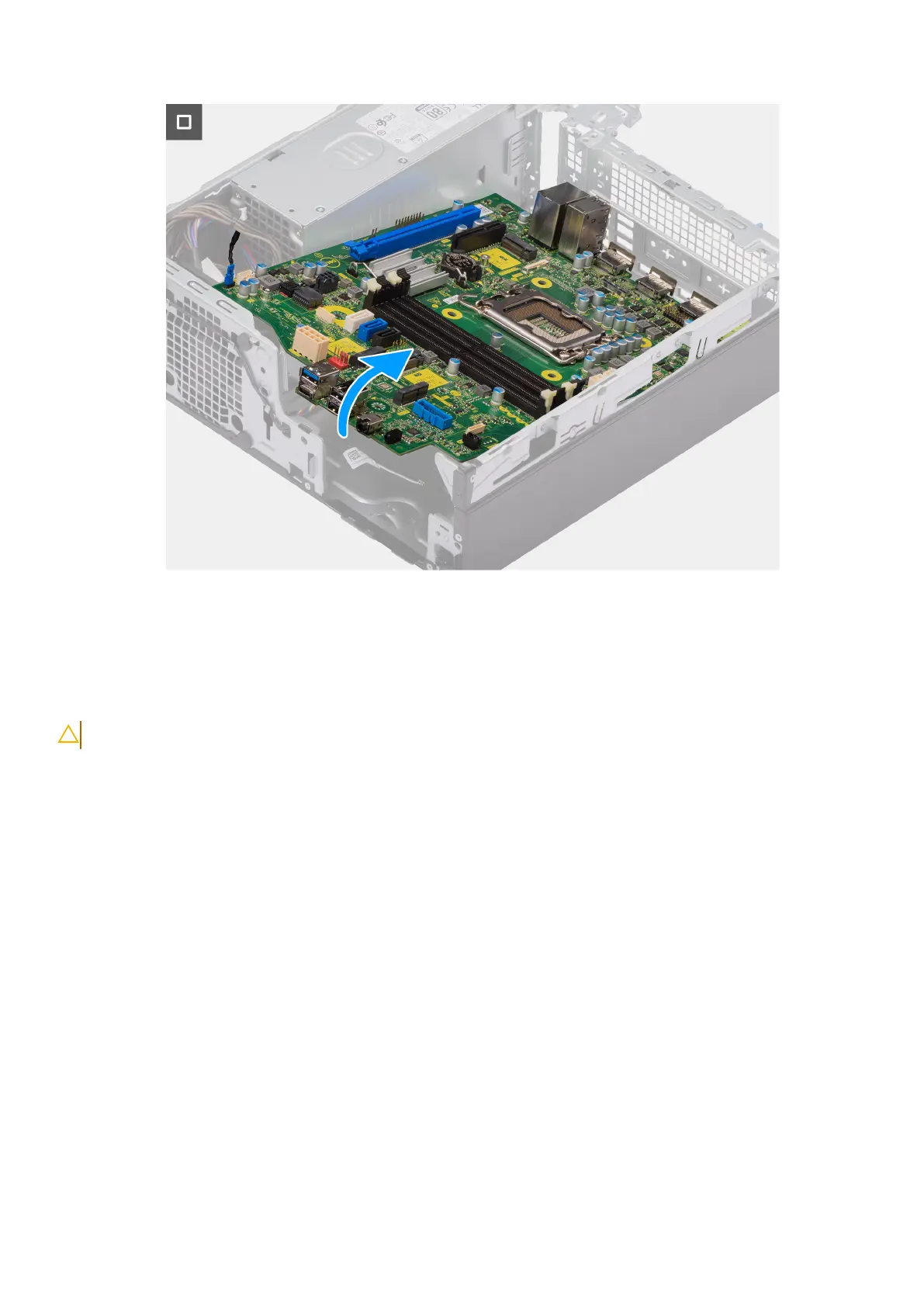

Figure 68. Removing the system board
14. Free the system board from the back I/O panel by sliding it towards the right and lift the system board out of the chassis.
Installing the system board
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the connectors on your system board.
112
Removing and installing Field Replaceable Units (FRUs)
