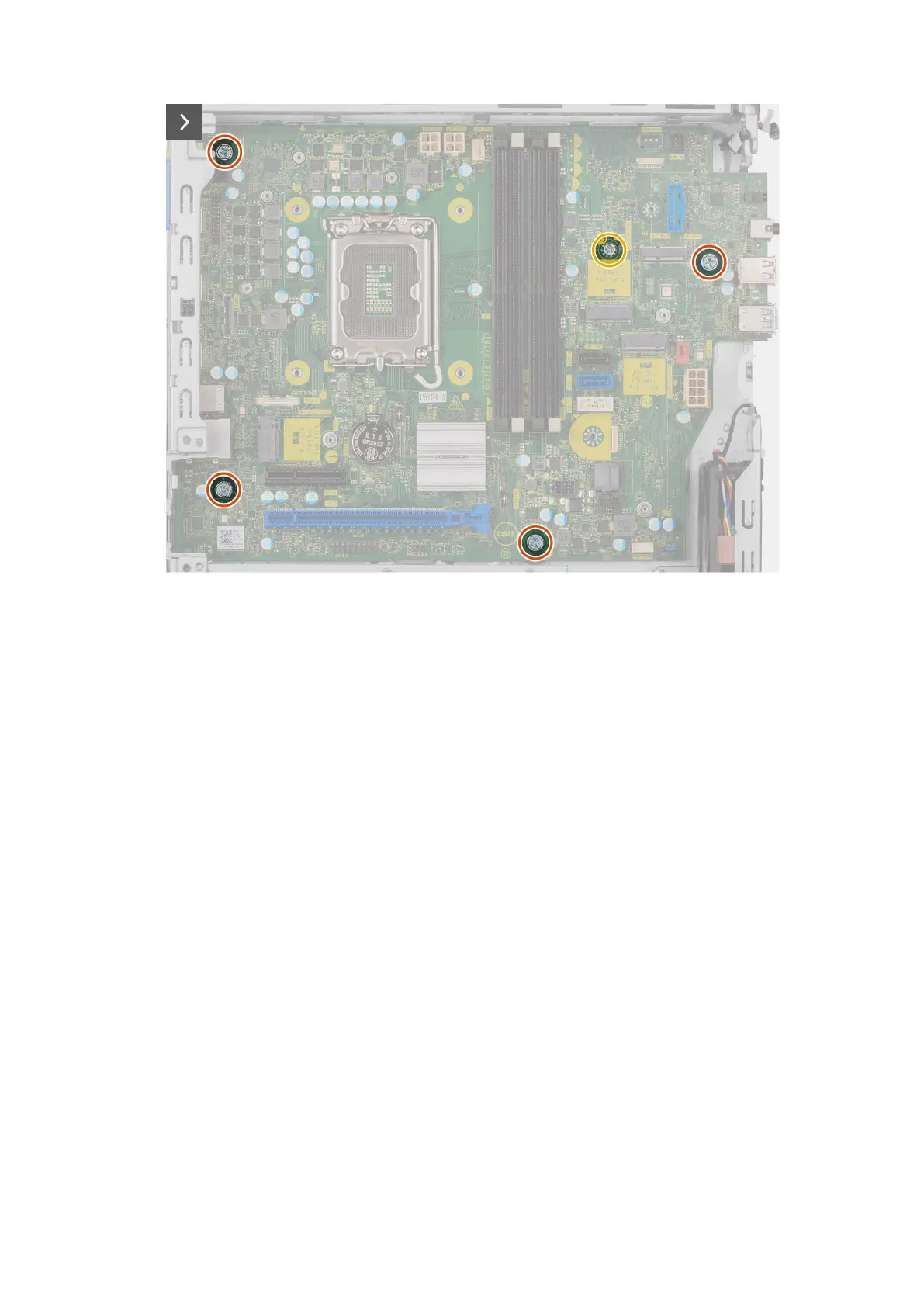

Figure 67. Removing the system board
12. Remove the four screws (#6-32) that secure the system board to the chassis.
13. Remove the screw mount that secure the system board to the chassis, if applicable.
Removing and installing Field Replaceable Units (FRUs)
111

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dell OptiPlex Small Form Factor Plus 7020 and is the answer not in the manual?

Dell OptiPlex Small Form Factor Plus 7020 Specifications

General IconGeneral
Operating SystemWindows 11 Pro, Windows 11 Home
MemoryUp to 64 GB
StorageUp to 2TB M.2 PCIe NVMe SSD
GraphicsIntel UHD Graphics 730 (i3), Intel UHD Graphics 770 (i5, i7, i9)
Ports (Front)1 x USB 3.2 Gen 2x2 Type-C port
Ports (Rear)2 x USB 2.0
Expansion Slots1 x M.2 2230
NetworkingIntel Wi-Fi 6E AX211, Bluetooth
Power Supply260 W
Form FactorSmall Form Factor
