6. Follow the procedure in After working inside your computer.
Type-C module
Removing the Type-C module
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
4. Remove the 3.5-inch hard drive, if applicable.
5. Remove the disk-drive cage.
6. Remove the processor fan and heat-sink assembly.
About this task
The following image indicates the location of the Type-C module and provides a visual representation of the removal procedure.

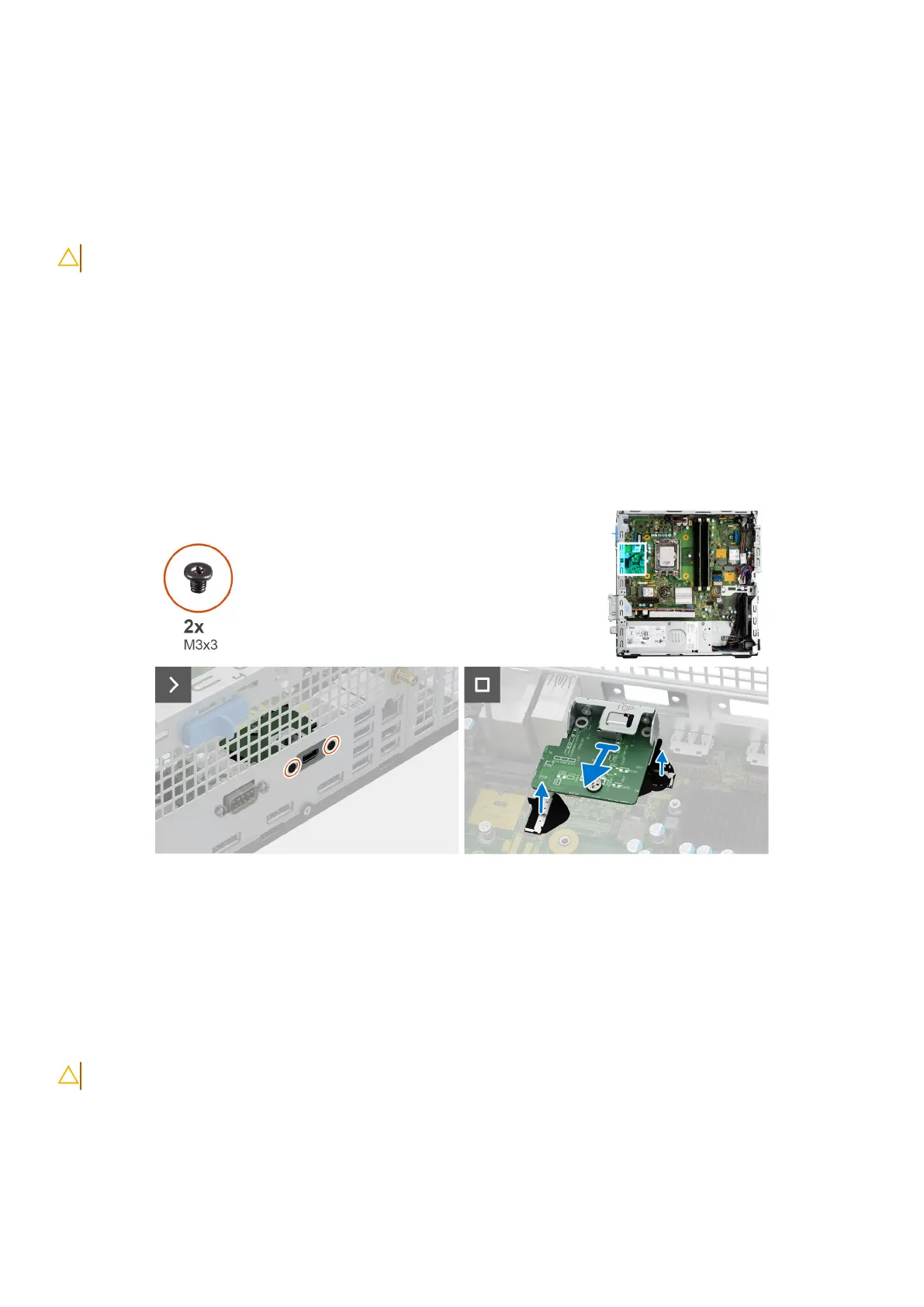

Figure 62. Removing the Type-C module
Steps
1. Remove the two (M3x3) screws that secure the Type-C module to the chassis.
2. Disconnect the Type-C-module cables from its connectors (VIDEO and TYPE-C) on the system board.
3. Lift the Type-C module off the system board.
Installing the Type-C module
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
Removing and installing Field Replaceable Units (FRUs)
105
