● Phillips screwdriver #0
● Phillips screwdriver #1
● Torx #5 (T5) screwdriver
● Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, and the quantity of screws,
and then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.

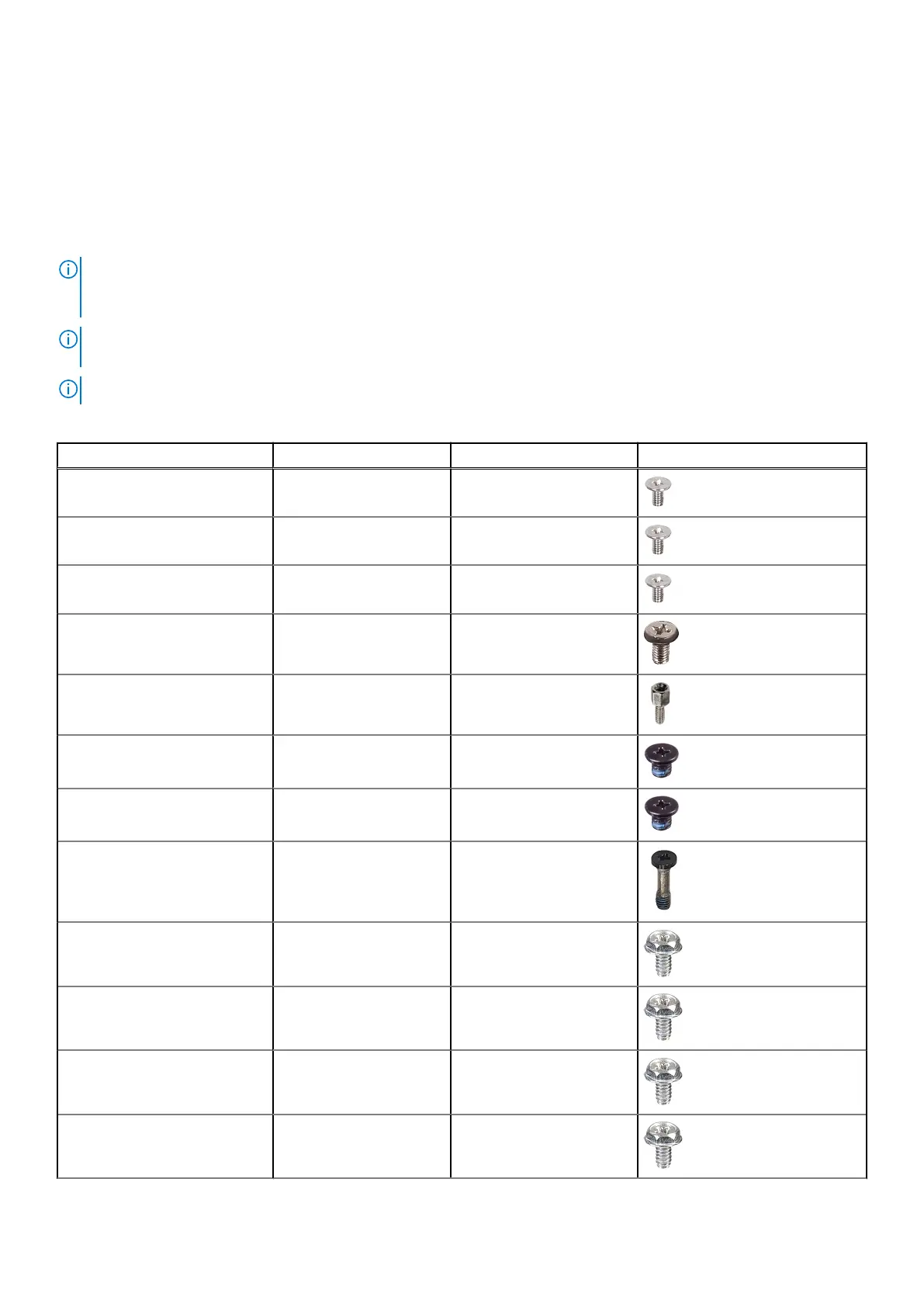

Table 27. Screw list
Component Screw type Quantity Screw image
M.2 2230 solid-state drive M2x3.5 1
M.2 2280 solid-state drive M2x3.5 1
WLAN card M2x3.5 1
SD-card reader (optional) M3x5 2
Serial/VGA module (optional) M3 2
DP/HDMI/Type-C module
(optional)
M3x3 2
Internal antenna kit M3x3 2
Processor-fan and heat-sink
assembly
Captive 4
Power-supply unit #6-32 3
Front I/O bracket #6-32 1
Bay-support bracket #6-32 2
System board #6-32 4
34 Working inside your computer
