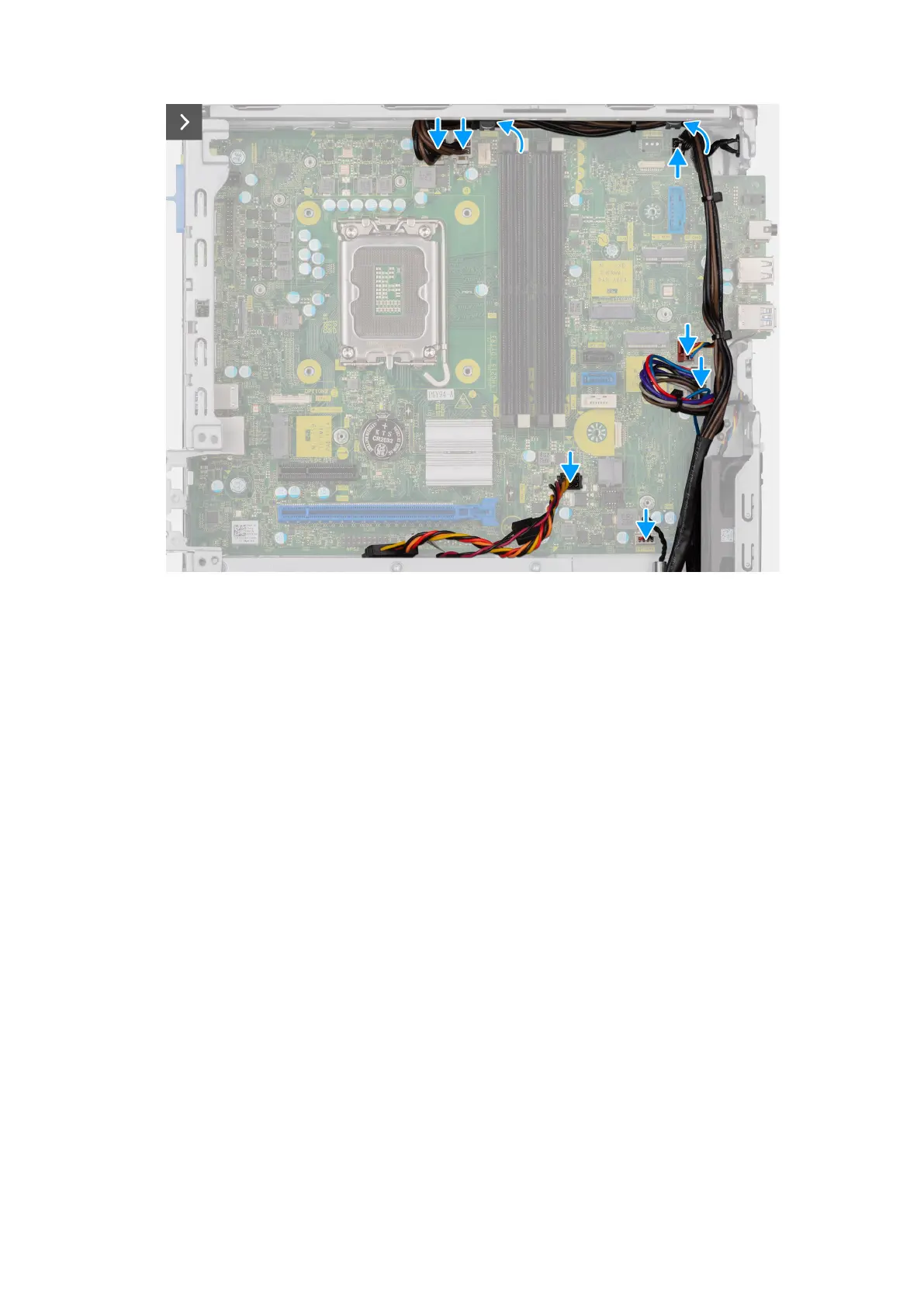

Figure 72. Installing the system board
4. Route and connect the SATA power cable to its connector (SATA PWR) on the system board.
5. Route and connect the speaker cable to its connector (INT SPKR) on the system board.
6. Route and connect the system-fan cable to its connector (FAN SYS) on the system board.
7. Route and connect the power-button cable to its connector (PWR SW) on the system board.
8. Route and connect the power-supply cables to their connectors (ATX CPU1, ATX CPU2 and ATX SYS) on the system board.
116
Removing and installing Field Replaceable Units (FRUs)
