Dell OptiPlex Small Form Factor Plus 7020 User Manual

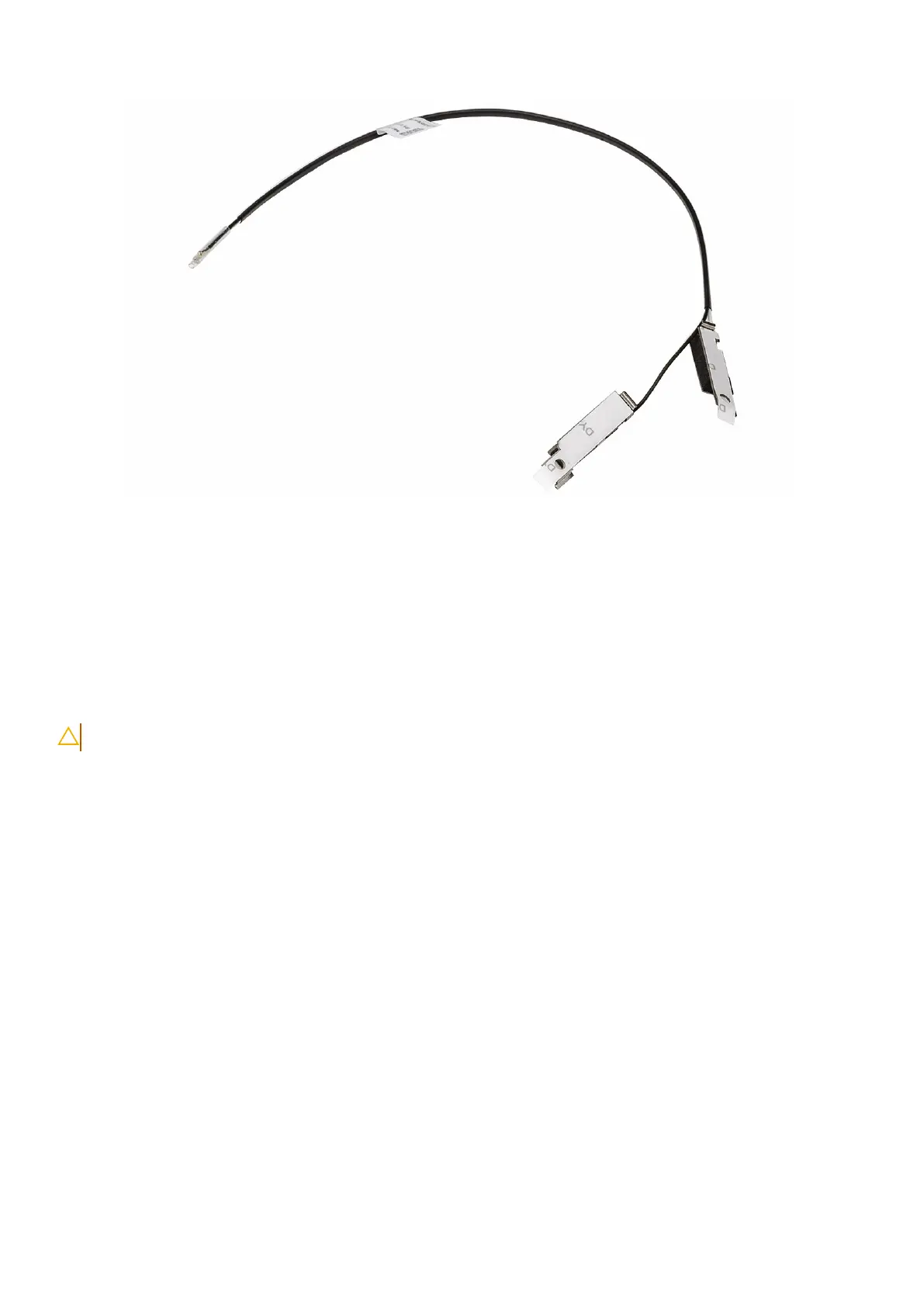

Figure 44. Internal antenna module
Steps
1. Gently pull the internal-antenna module cable out from the slot on the chassis.
2. Remove the internal antenna module cable from the routing guides on the chassis.
3. Remove the two screws (M3x3) that secure the internal antenna module to the chassis.
4. Remove the internal antenna module from the chassis.
Installing the internal antenna module
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the internal antenna module and provide a visual representation of the installation
procedure.
