MAC-Based ACEs
To add rules to an ACL:
1
Click Switching > Network Security > MAC Based ACE to display the
MAC Based ACE: Summary page.

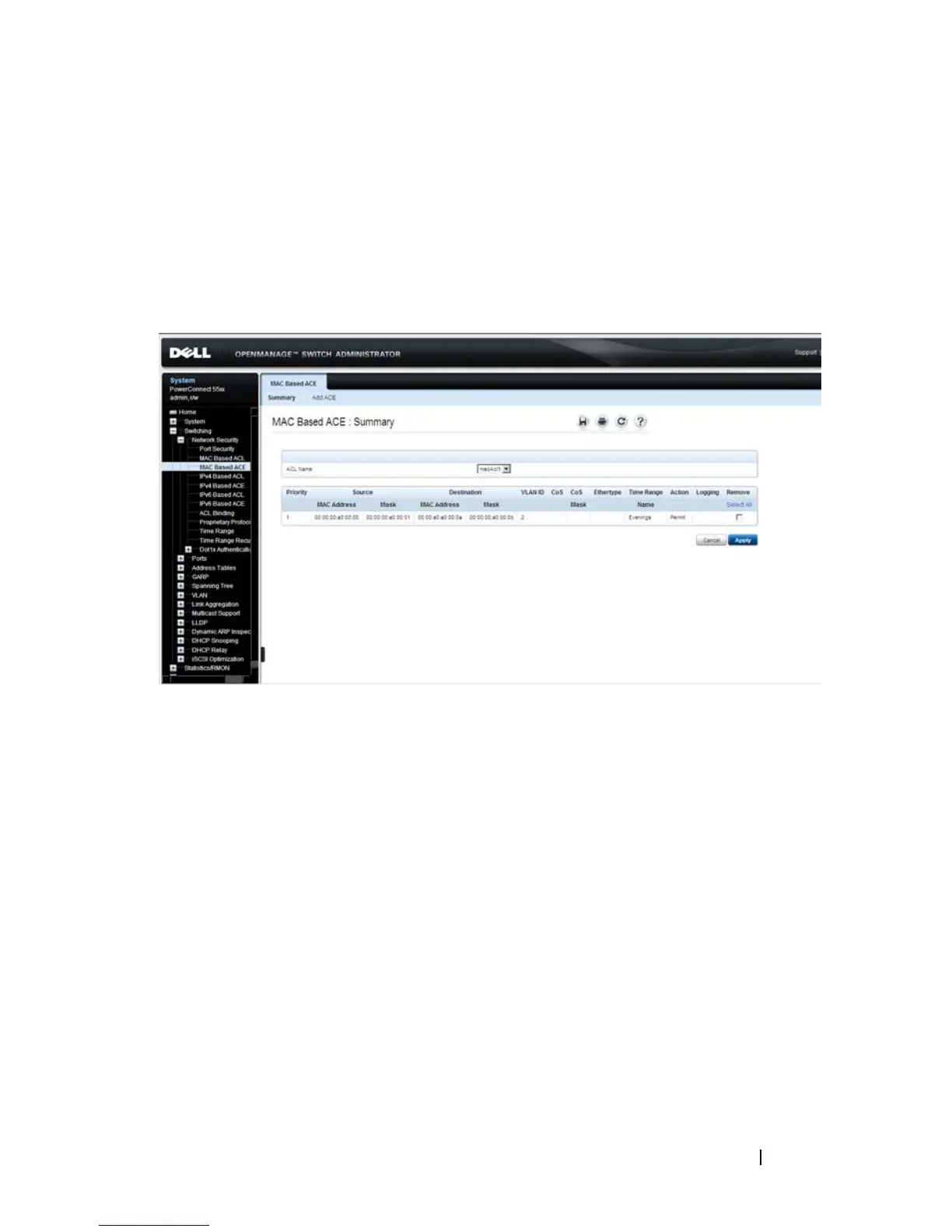

Figure 8-3. MAC Based ACE: Summary
The currently-defined rules for the selected ACL are displayed.
2 To add a rule click Add ACE .
3 Select the ACL for which a rule is being created.
4 Enter the fields:
–
New Rule Priority — Enter the priority of the ACE. ACEs with higher
priority are processed first. One is the highest priority
–
Source MAC Address — Match the source MAC address from which
packets have arrived to this source address. In addition to the Source
MAC address, you can enter a
Wildcard Mask that specifies which
bits in the source address are used for matching and which bits are
ignored. A wildcard of 00:00:00:00:00:00 means the bits must be
matched exactly; ff:ff:ff:ff:ff:ff means the bits are irrelevant. Any
combination of 0s and ffs can be used.
–
Any — Check to indicate that the source address is not matched.
