104 Dell PowerConnect 55xx Systems User Guide
IPv4-Based ACLs
To define an IPv4-based ACL:
1
Click Switching > Network Security > IPv4 Based ACL to display the
IPv4 Based ACL: Summary page.

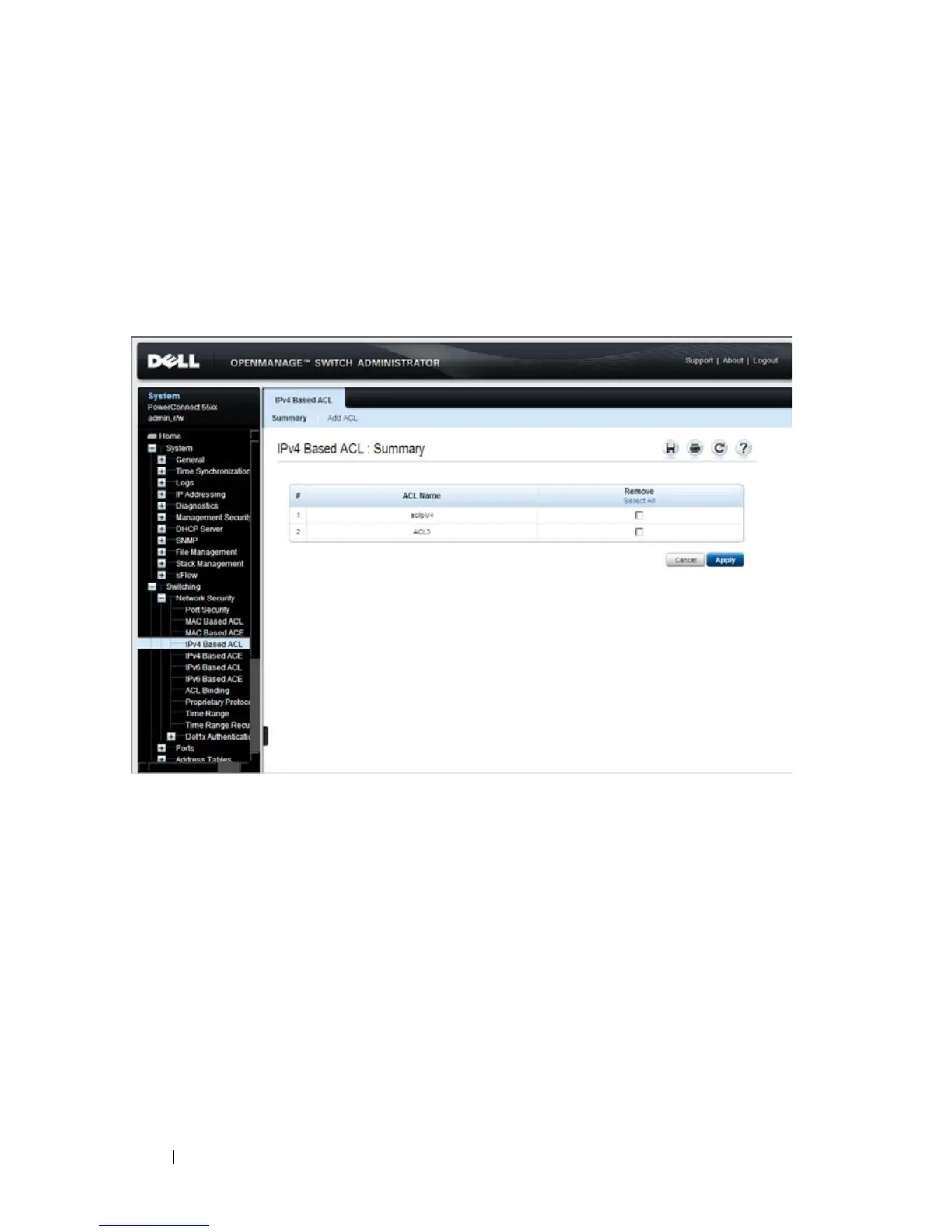

Figure 8-4. IPv4 Based ACL: Summary
The previously-defined IPv4 ACLs are displayed.
2 To add a new ACL, click Add ACL .
3 Enter the name of the new ACL. Names are case-sensitive.
