208 Dell PowerConnect 55xx Systems User Guide

To define the switch as a DHCP client:

Click

System

IP Addressing

DHCP IPv4 Interface

in the tree view to

display the

DHCP IPv4 Interface: Summary

page.

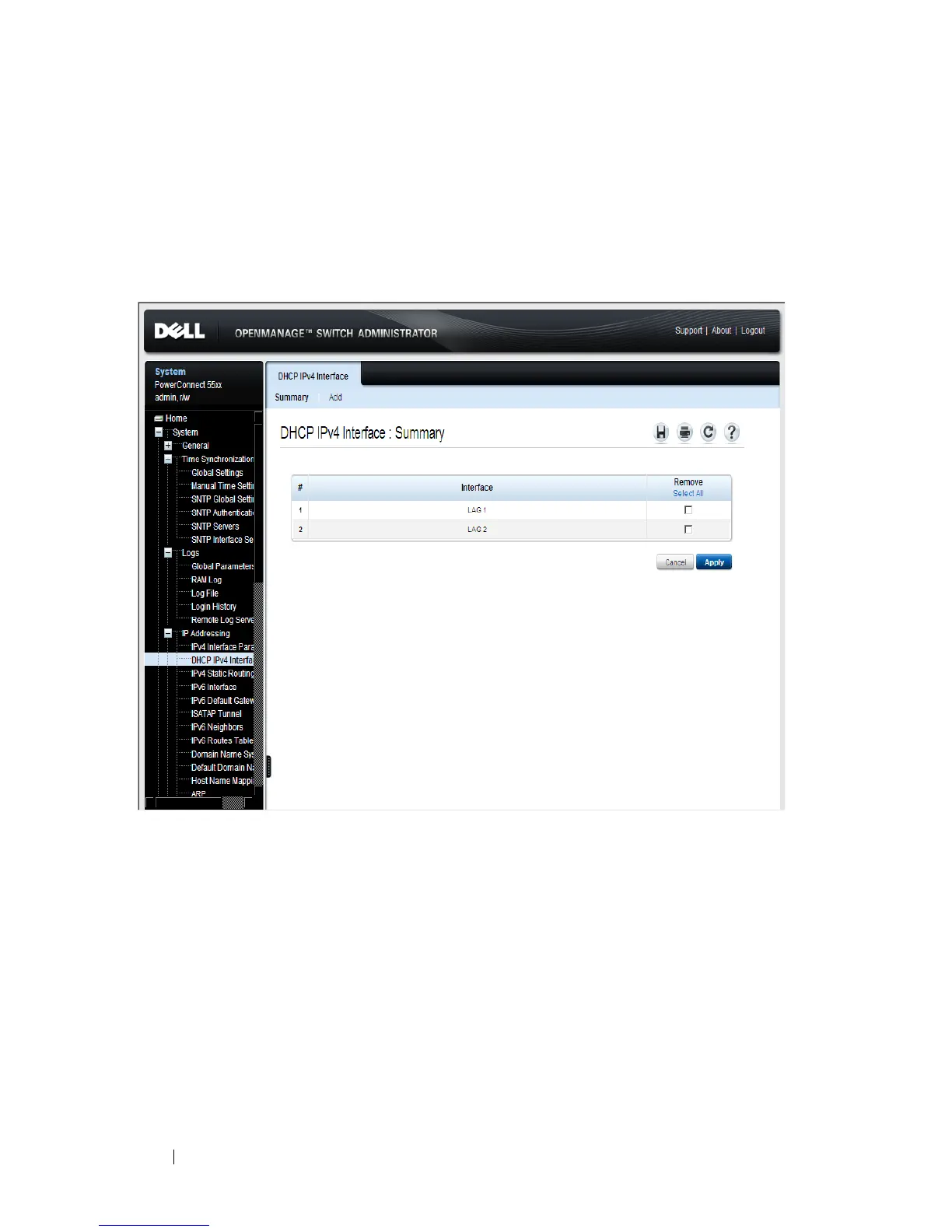

Figure 9-16. DHCP IPv4 Interface: Summary
