Dell PowerConnect 55xx Systems User Guide 345
To download from a USB port or when management computer uses HTTP
1 Click System > File Management > File Download in the tree view to
display the
File Download page.

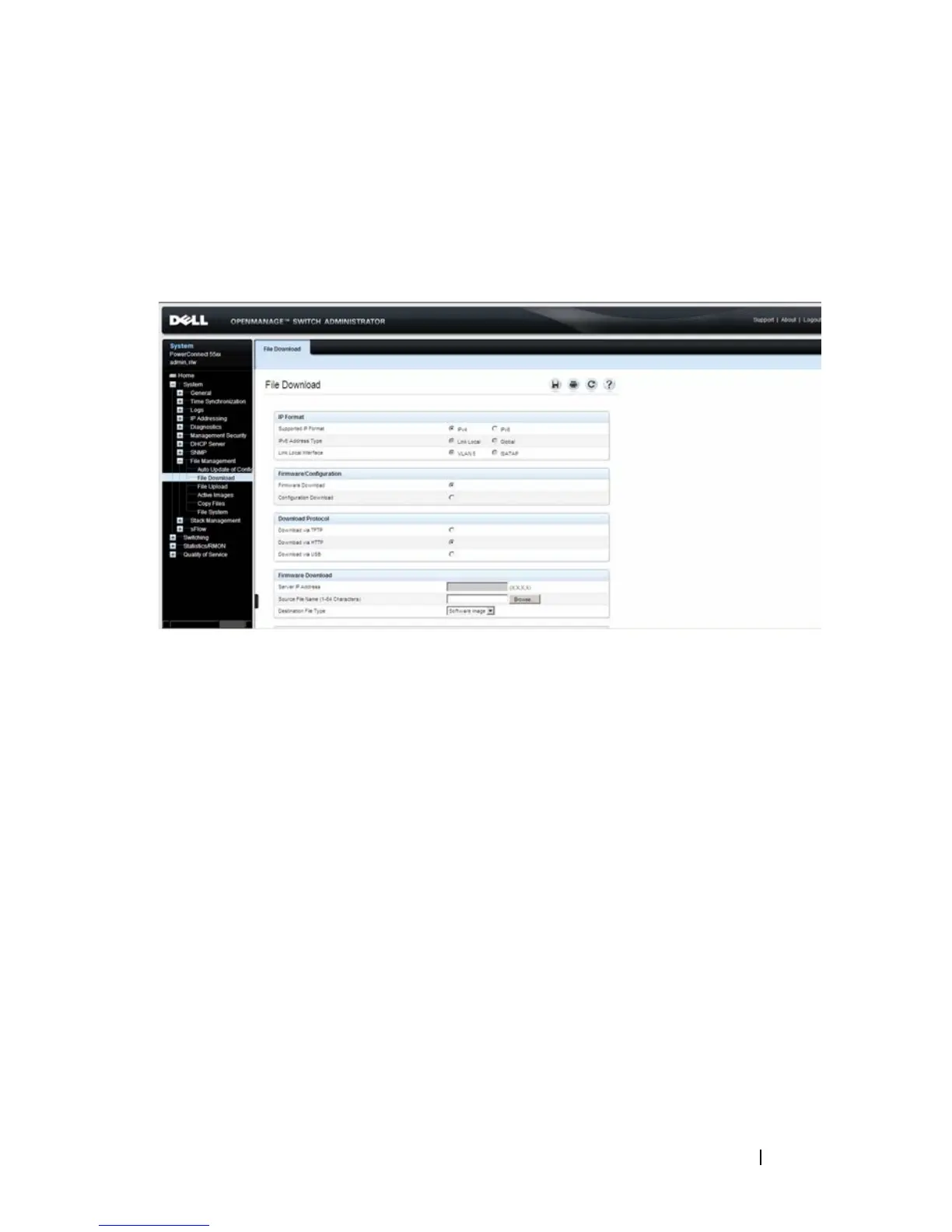

Figure 9-55. File Download
2 For HTTP, enter the IP Format fields for the HTTP server IP address.
–
Supported IP Format — Select whether IPv4 or IPv6 format is
supported.
–
IPv6 Address Type — When the server supports IPv6, this specifies
the type of static address supported. The possible options are:
•
Link Local — A Link Local address that is non-routable and used
for communication on the same network only.
•
Global — A globally unique IPv6 address; visible and reachable
from different subnets.
–
Link Local Interface — When the server supports an IPv6 Link Local
address, this specifies the Link Local interface. The possible options
are:
•
VLAN — The VLAN on which the IPv6 interface is configured.
•
ISATAP — The IPv6 interface is configured on an ISATAP
tunnel.
