Dell PowerConnect 55xx Systems User Guide 479
To define a protocol group:
1
Click Switching > VLAN > Protocol Group in the tree view to display
the
Protocol Group: Summary page.

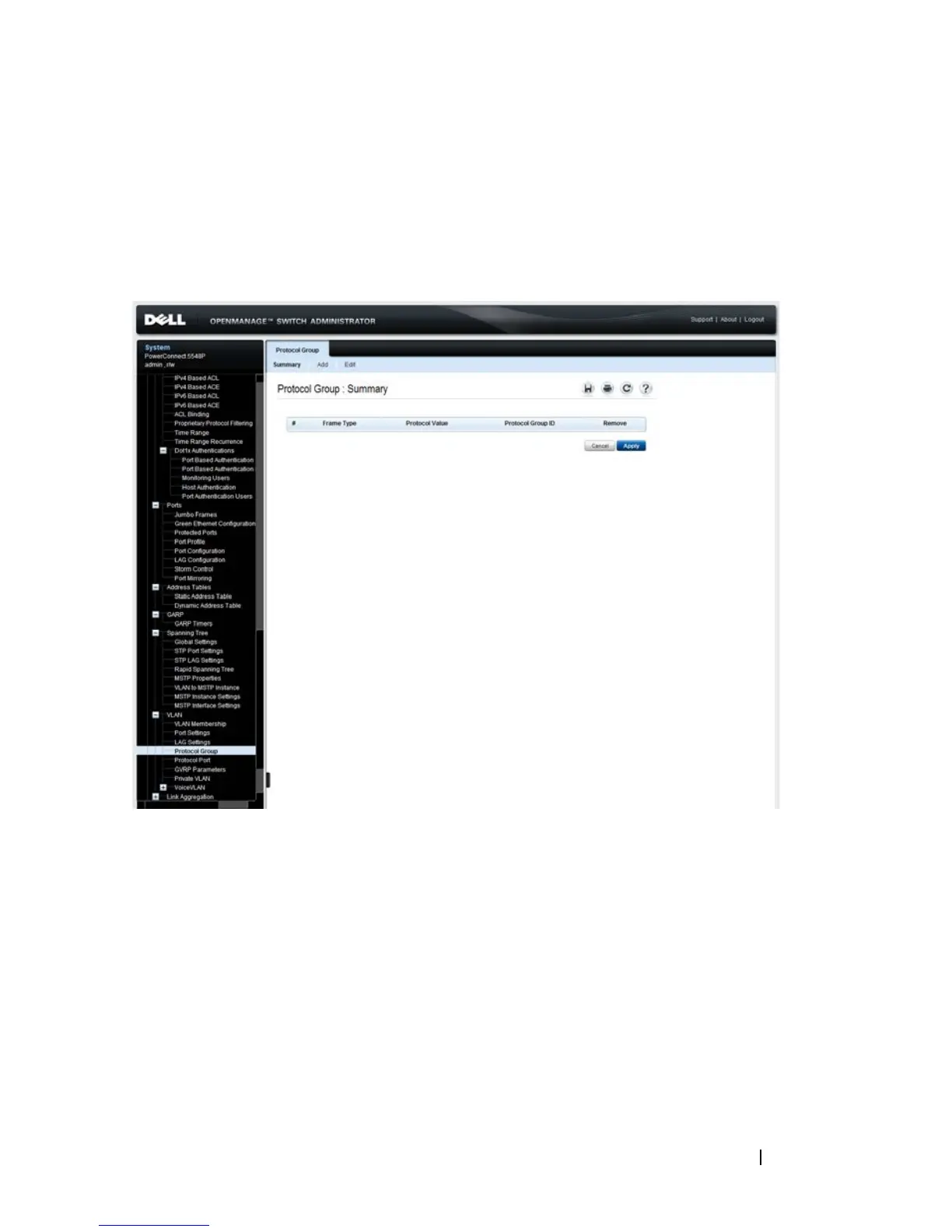

Figure 14-5. Protocol Group: Summary
The currently-defined protocol groups are displayed.
2 To add a new protocol group, click Add , and enter the fields:
–
Frame Type — Select a frame type to be accepted in the protocol
group.
–
Protocol Value — Select a protocol name.
or
–
Ethernet-Based Protocol Value (0600 - FFFF) — Enter the Ethernet
protocol group type.
–
Protocol Group ID — Assign a protocol group ID number.
