Dell PowerConnect 55xx Systems User Guide 541
To add a MED network policy:
1
Click
System
>
LLDP
>
MED Network Policy
in the tree view to display
the
MED Network Policy: Summary
page.

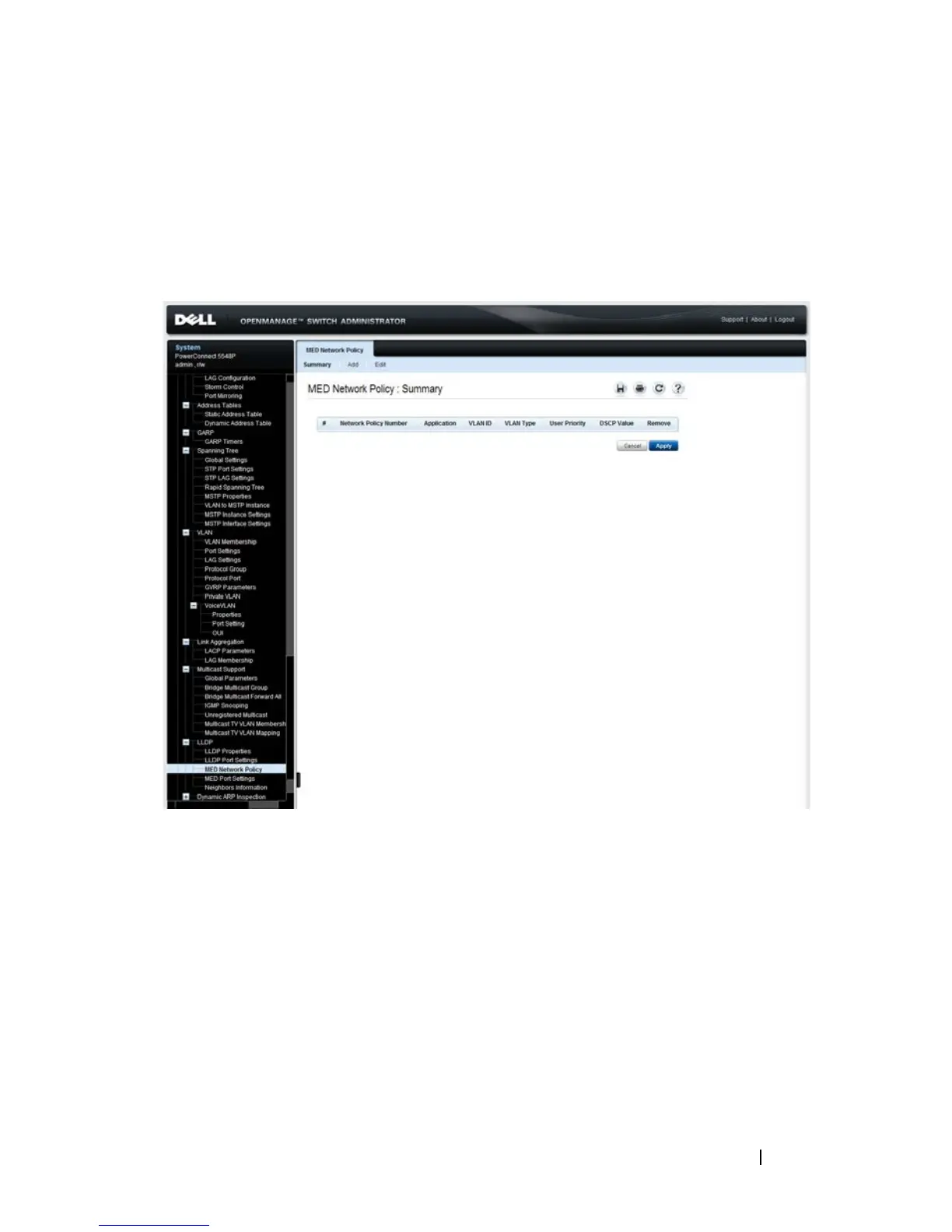

Figure 17-3. MED Network Policy: Summary
Previously-defined network policies are displayed.
2
To add a network policy, click
Add
, and enter the fields:
Network Policy Number
— Select an available network policy
number.
Application
— Select the application (type of traffic) for which the
network policy is defined.
VLAN ID
— Enter the VLAN ID to which the traffic should be sent.
VLAN Type
—Select whether the traffic is Tagged or Untagged.
