Dell PowerConnect 55xx Systems User Guide 645
QoS Properties
To set the default CoS value on incoming, untagged packets:
1
Click Quality of Service > General > QoS Properties in the tree view to
display the
QoS Properties: Summary page.

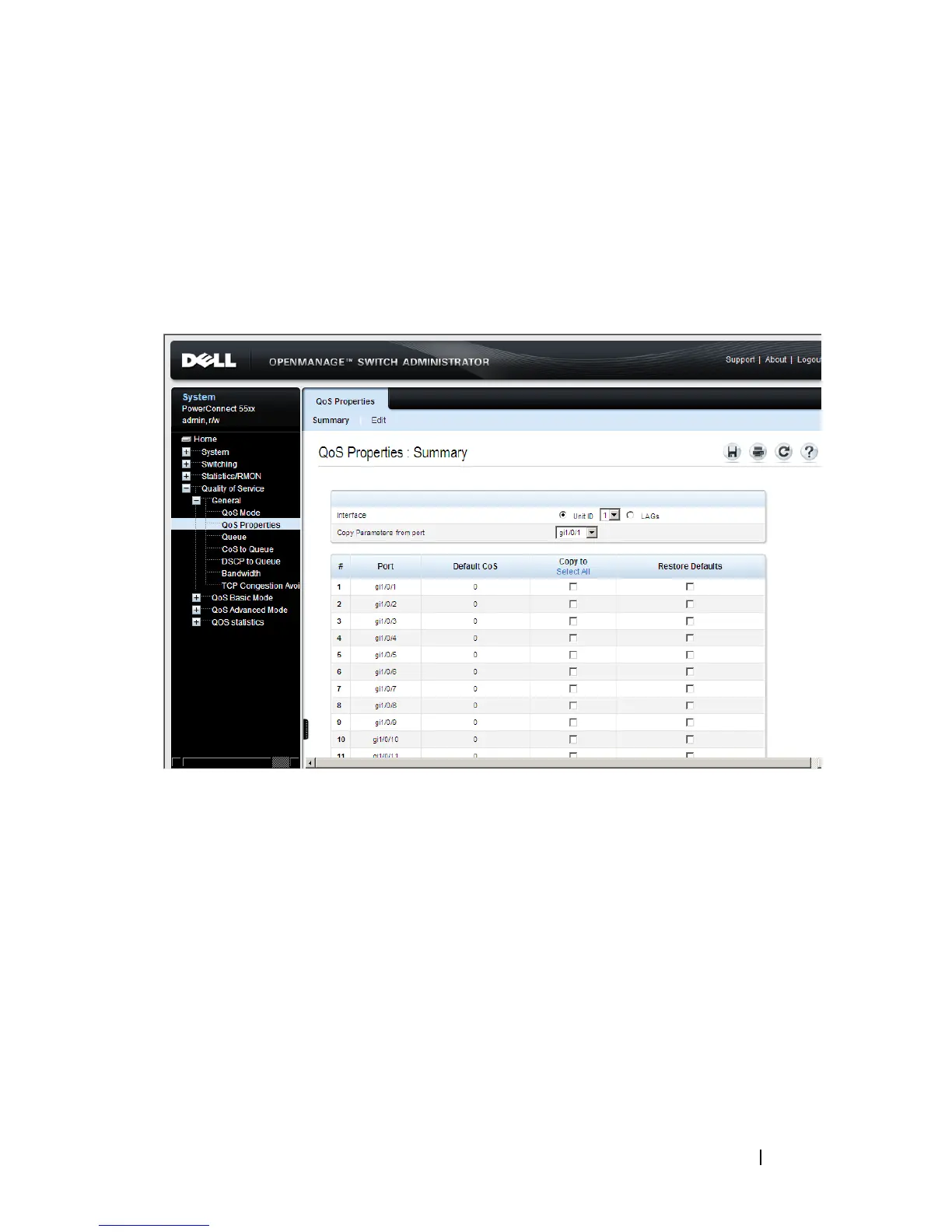

Figure 22-2. QoS Properties: Summary
The default CoS values for all interfaces on the selected unit are displayed.
2 To modify the CoS value for an interface, click Edit , and enter the fields:
–
Interface — Select a port or LAG if required.
–
Set Default CoS — Enter the default CoS tag value for untagged
packets.
