To define a class map:
1
Click Quality of Service > QoS Advanced Mode > Class Mapping to
display the
Class Mapping: Summary page.

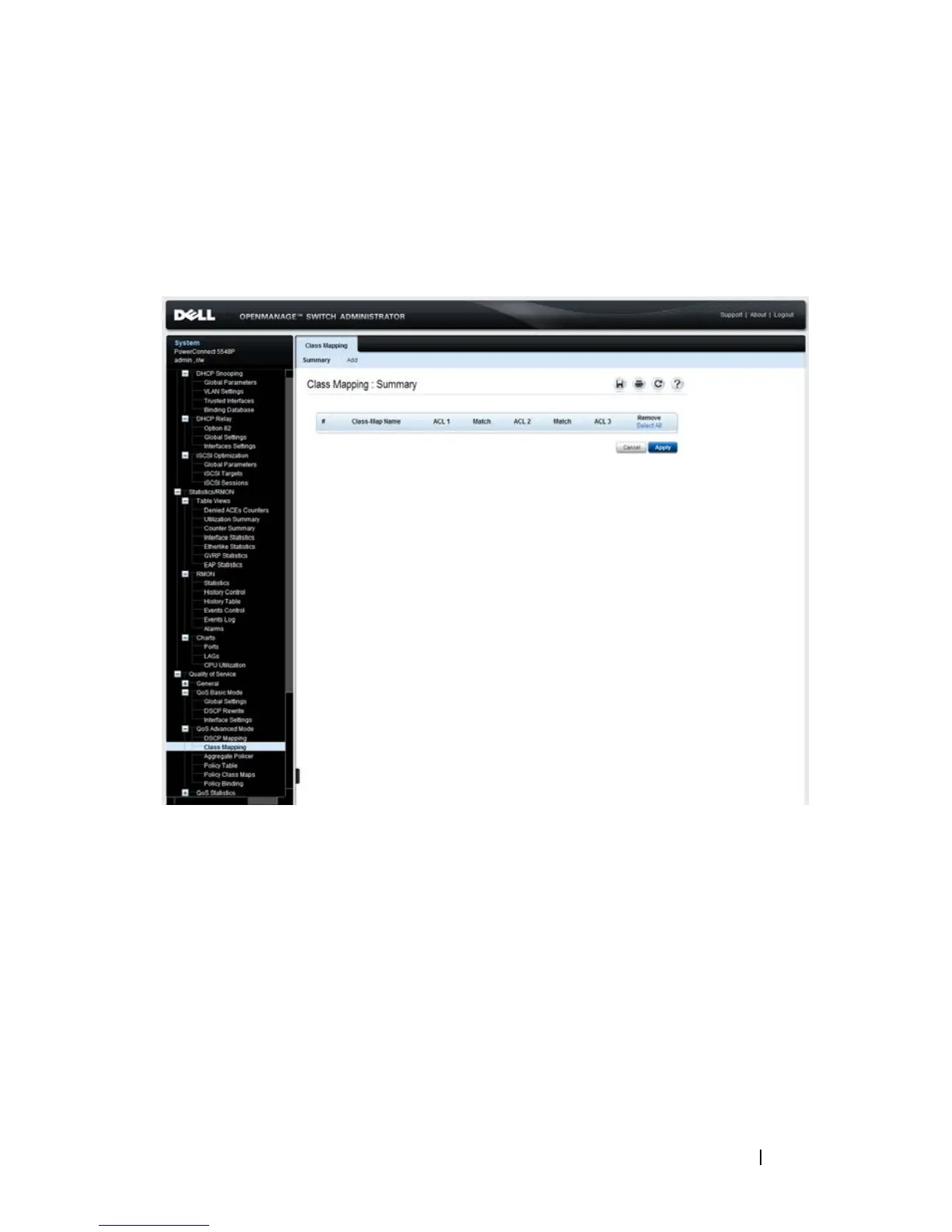

Figure 22-12. Class Mapping: Summary
The previously-defined class maps are displayed.
2 To add a class map, click Add .
A new class map is added by selecting one or two ACLs and assigning them
a class map name. If a class map has two ACLs, specify that a frame must
match both ACLs, or that it must match either one or both of the ACLs
selected.
3 Enter the parameters.
–
Class Map Name — Enter the name of a new class map.
