Dell PowerConnect 55xx Systems User Guide 691
Aggregated Policer
To view aggregated policer statistics:
1
Click Quality of Service  QoS Statistics  Aggregate Policer to display
the
Aggregate Policer: Summary page.

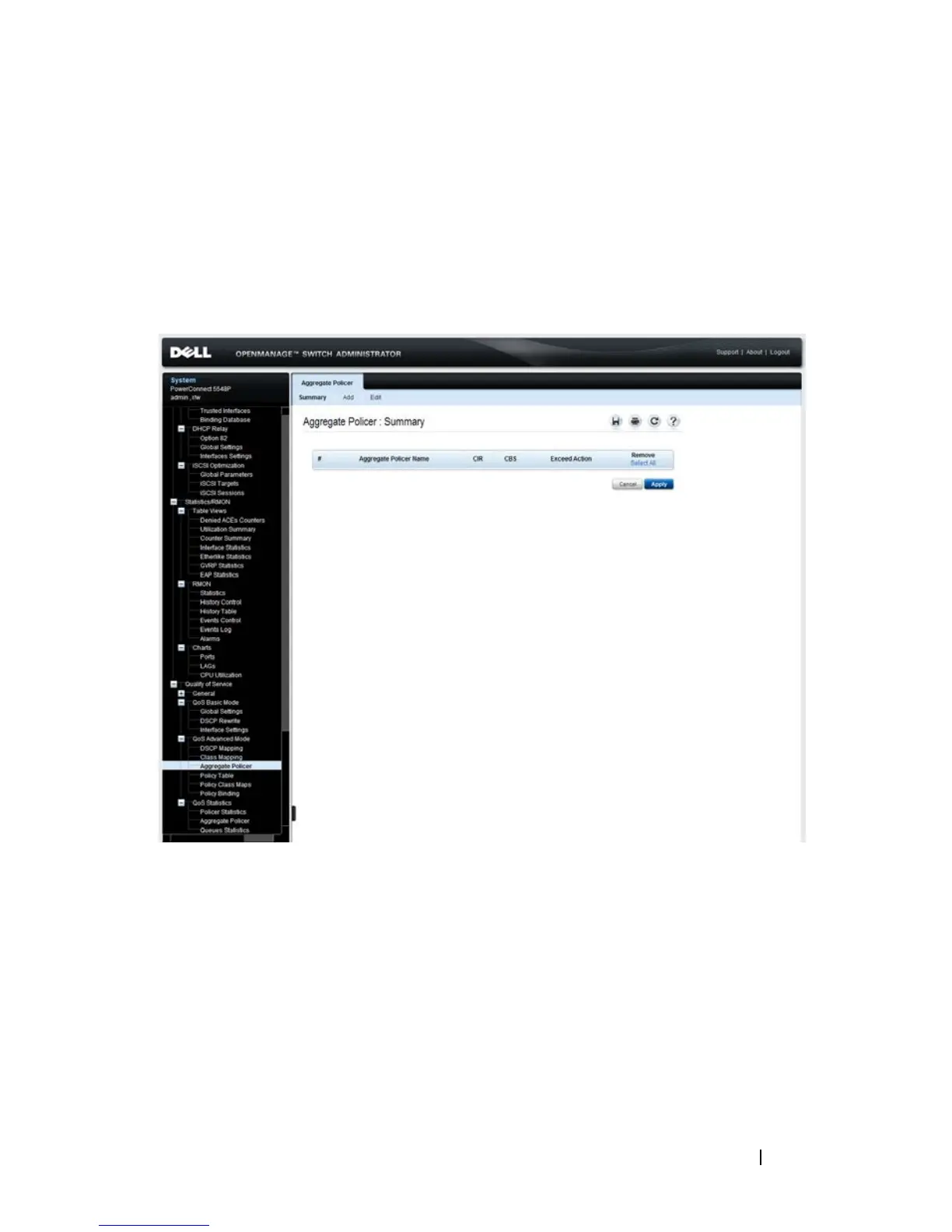

Figure 22-18. Aggregate Policer: Summary
The following statistics for the previously-defined counters are displayed:
– Aggregate Policer Name — Policer on which statistics are based.
– In-Profile Bytes — Number of in-profile packets that were received.
– Out-of-Profile Bytes — Number of out-of-profile packets that were
received.
2
To add a new counter that applies to another aggregate policer, click Add .
