14 | About Your System

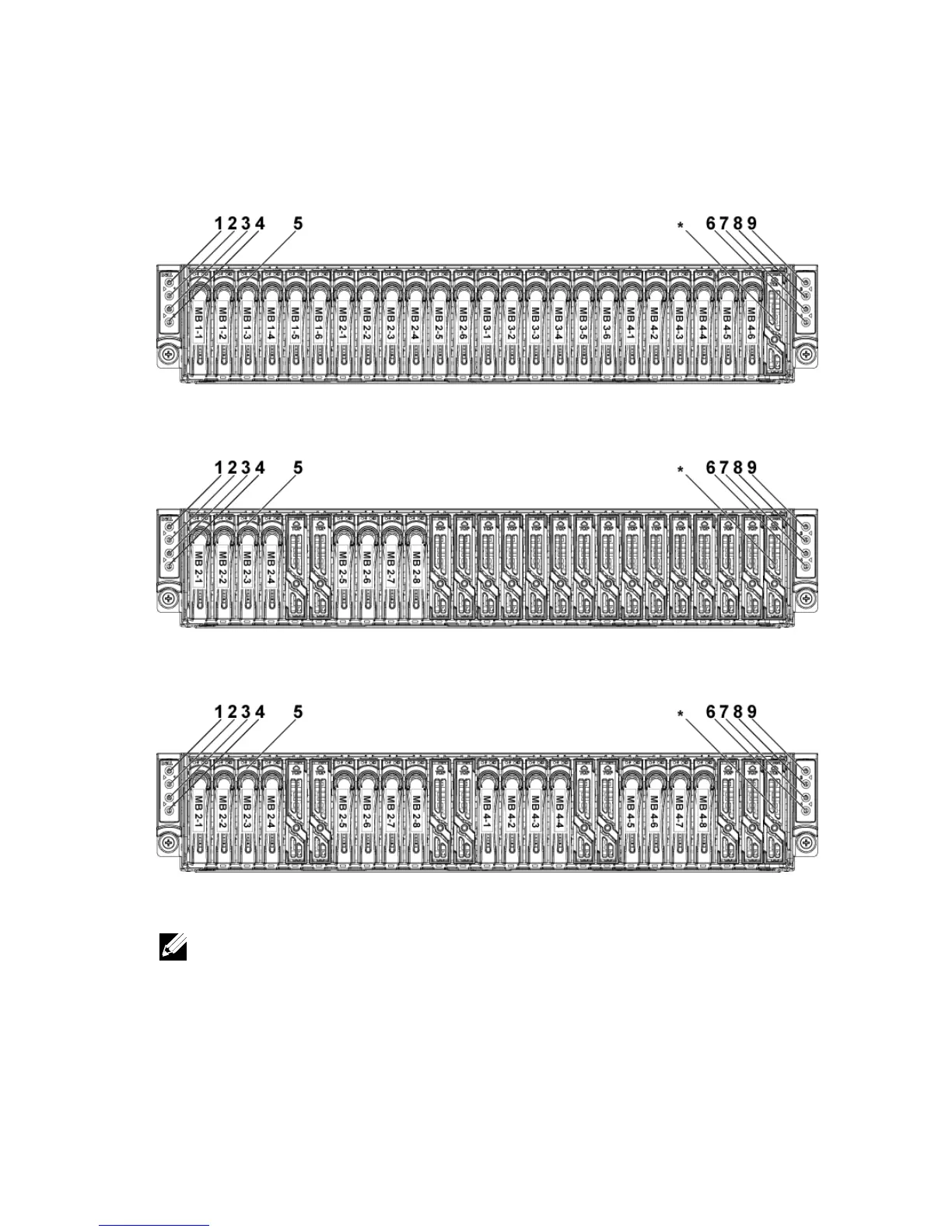

Figure 1-4. Front Panel−2.5” x24 Hard Drives With Four System Boards
Figure 1-5. Front Panel−2.5” x8 Hard Drives With One System Board
Figure 1-6. Front Panel−2.5” x16 Hard Drives With Two System Boards
NOTE: Figure 1-2, Figure 1-3, Figure 1-5 and Figure 1-6 only support the 2U-node
system with the configurations of interposer extender and LSI9265-8i card (or LSI
2008 SAS mezzanine card).
