192 | Installing System Components
Cable Routing for Riser Card (2U Node)
1 Connect the USB cable to the 1U riser card, and connect the other end
of the cable to the corresponding connectors on the system board. See
Figure 3-40.

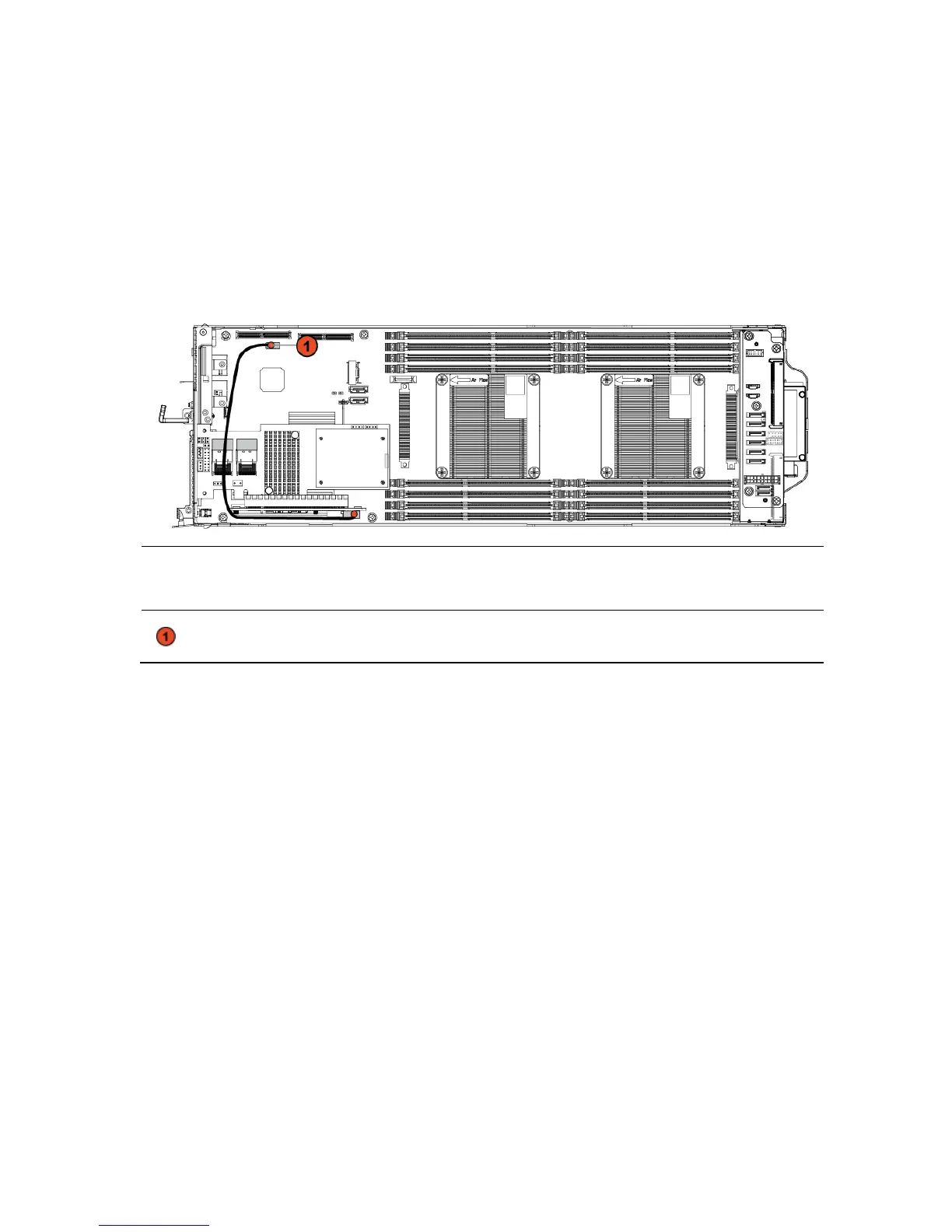

Figure 3-40. Cable Routing for 2U Riser Card USB Cable
8
Item
Cable
From
(Riser Card)
To
(System Board)
USB cable
USB connector
internal USB
connector
