Dell PowerEdge C6220 - Cable Routing for Middle Plane to 2.5 Hard-Drive Backplane for Expander Configuration

Installing System Components | 247
Cable Routing for Middle Plane to 2.5” Hard-Drive Backplane for
Expander Configuration

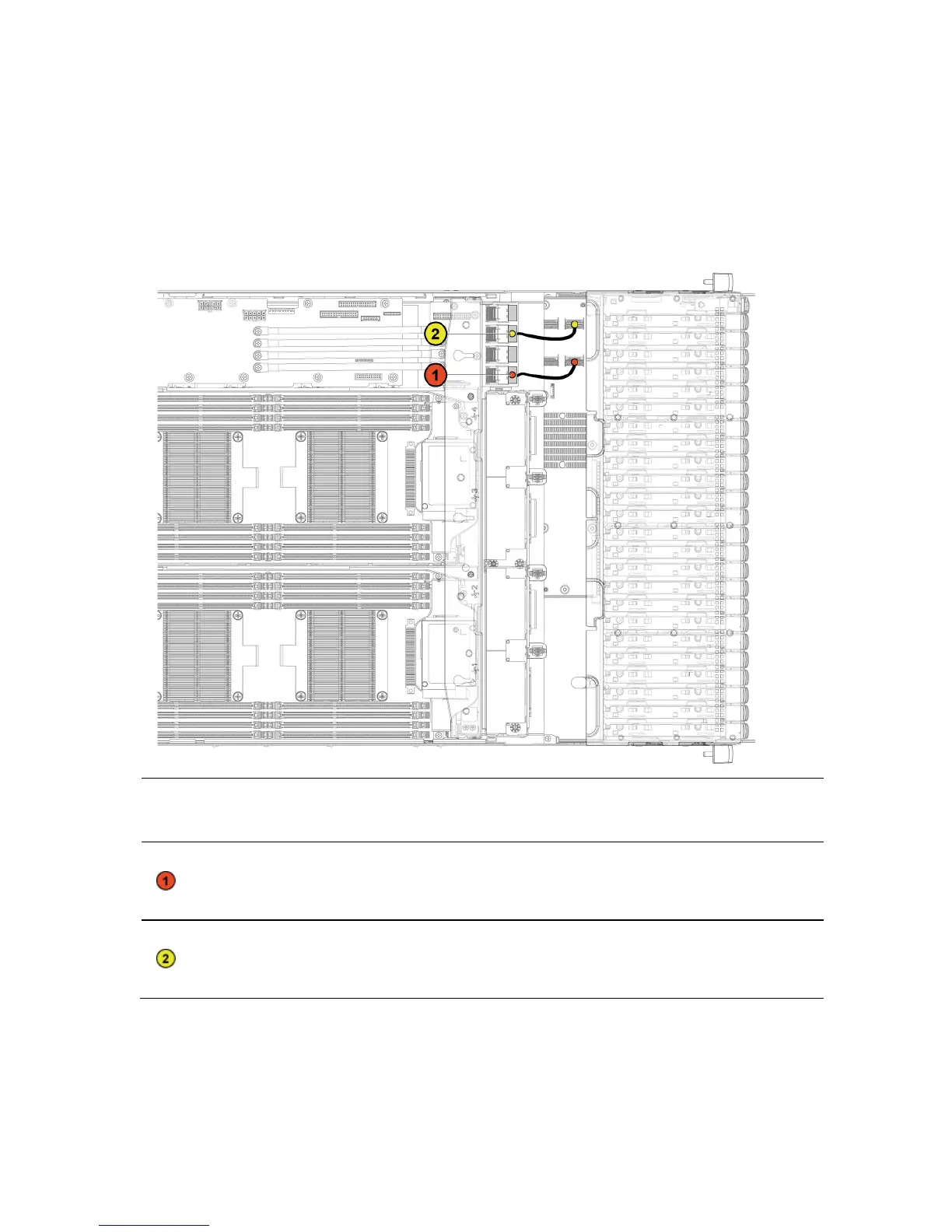

Figure 3-79. Cable Routing−Top Middle Plane to 2.5” Hard Drive for Expander
Configuration
Item
Cable
From
(Top Middle Plane)
To
(Expander Card)
Hard-drive
backplane
cable
mini-SAS connector for
system board 1 (J1)
mini-SAS connector
( 0~3) for system
board 1
Hard-drive
backplane
cable
mini-SAS connector for
system board 3 (J3)
mini-SAS connector
(8~11) for system
board 3
