Dell PowerEdge C6220 - Front-Panel Features and Indicators

About Your System | 13
Front-Panel Features and Indicators

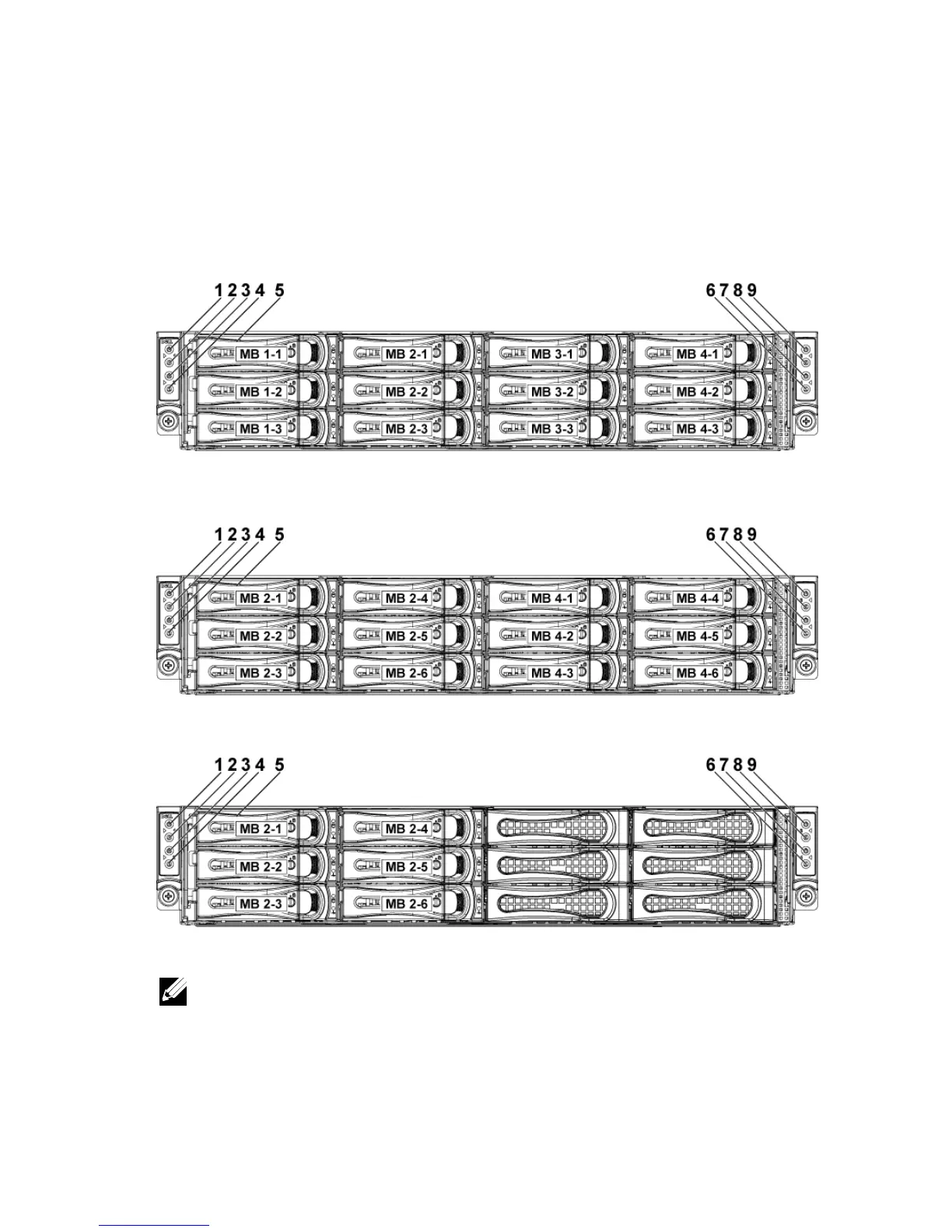

Figure 1-1. Front Panel−3.5” x12 Hard Drives With Four System Boards
Figure 1-2. Front Panel−3.5” x12 Hard Drives With Two System Boards
Figure 1-3. Front Panel−3.5” x6 Hard Drives With One System Board
NOTE: Figure 1-3 supports at most 6 hard drives.
