Dell PowerEdge C6220 - 2.5 Hard-Drive Direct Backplane

298 | Installing System Components
2.5" Hard-Drive Direct Backplane

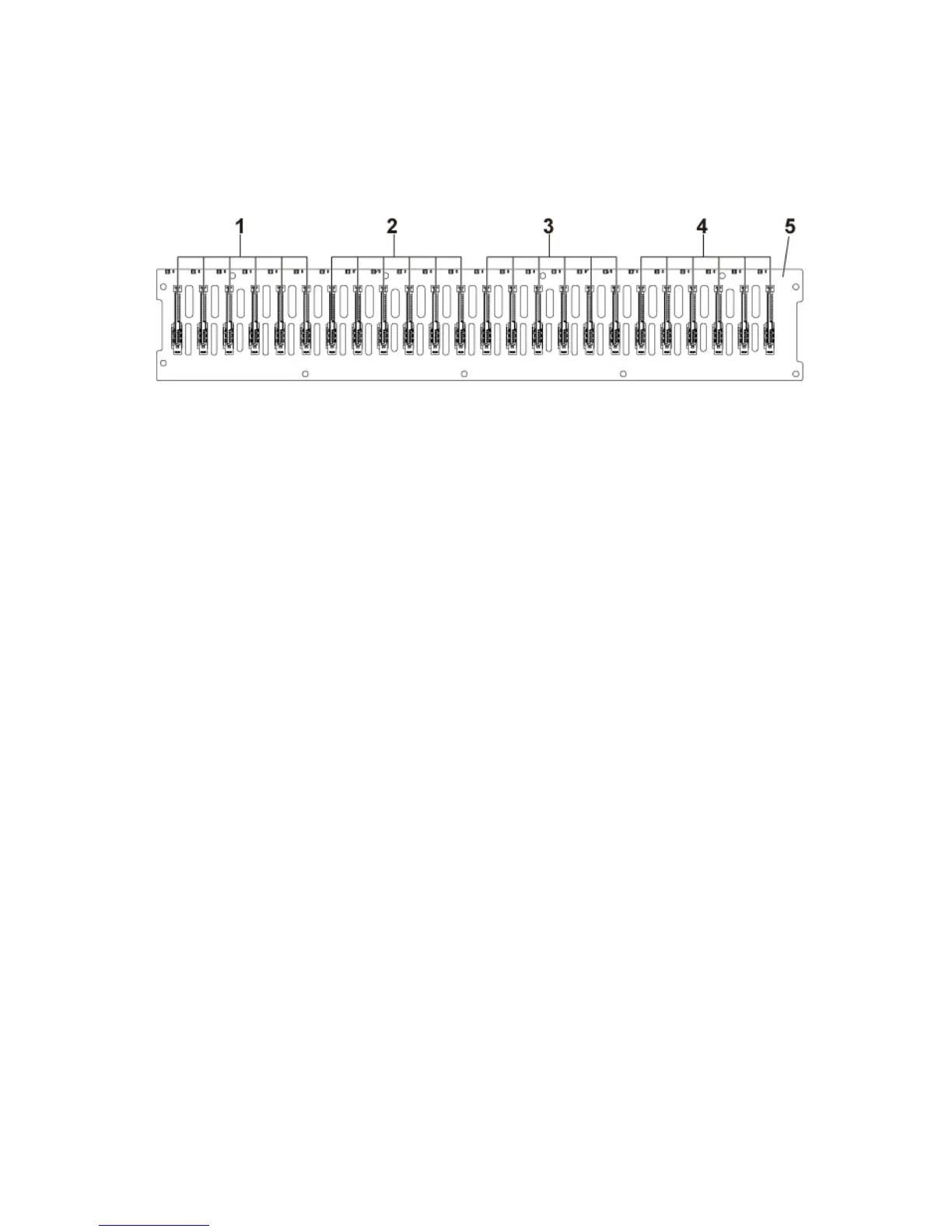

Figure 5-4. Front View of the Backplane
1
SATA2 and SAS connectors 1 to 6
for system board 1 (from left to right)
2
SATA2 and SAS connectors 1 to 6
for system board 2 (from left to
right)
3
SATA2 and SAS connectors 1 to 6
for system board 3 (from left to right)
4
SATA2 and SAS connectors 1 to 6
for system board 4 (from left to
right)
5
2.5” backplane
