184 | Installing System Components
Extender Tray” on page 153.
7 Replace the interposer extender. See “Removing the Interposer
Extender” on page 151.
8 Install the system-board assembly. See “Installing a System-Board
Assembly” on page 143.
Riser card
Optional Riser Cards

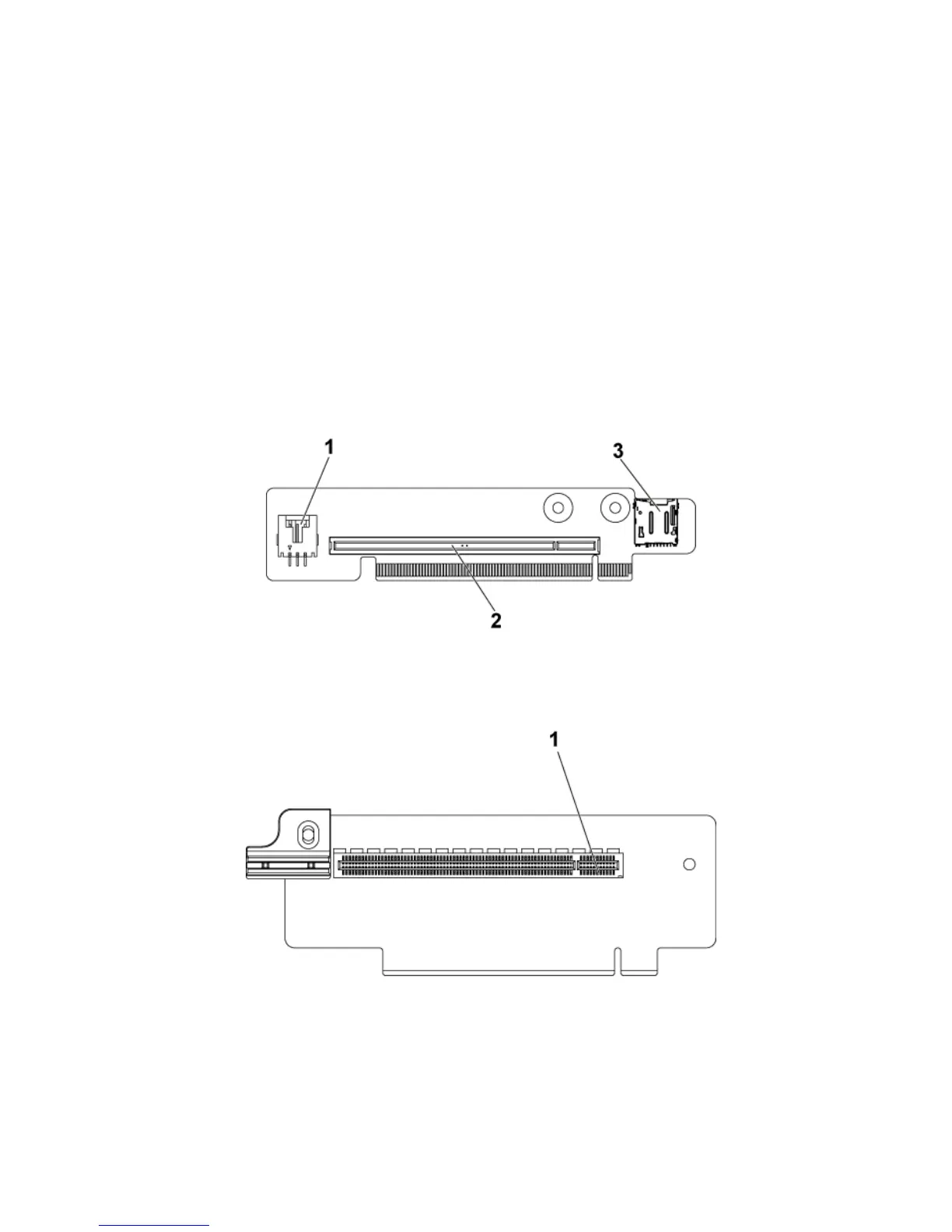

Figure 3-33. 1U Riser card for 1U Node
1
USB connector
2
PCI-E Gen 3 x16
3
micro SD card socket
Figure 3-34. 1.5U Riser card for 2U Node
1
PCI-E Gen 3 x16
