Cable Routing for Middle Plane to Direct Hard-Drive Backplane

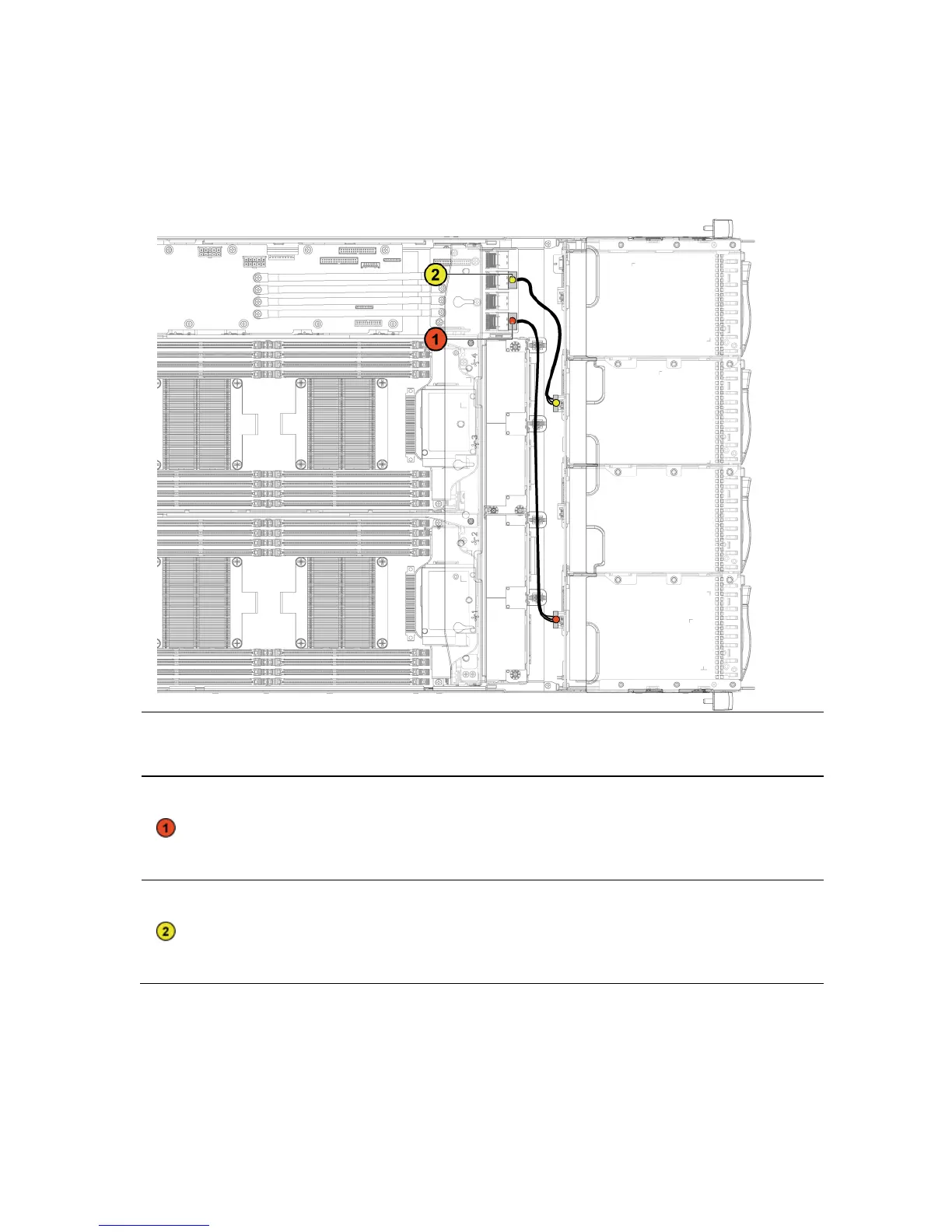

Figure 3-75. Cable Routing−Top Middle Plane to Direct Backplane for 12 x3.5”
Hard-Drive Configuration
Item
Cable
From
(Top Middle Plane)
To
(Direct Backplane)
Hard-drive
backplane
cable
mini-SAS connector for
system board 1 and 2
(hard drive 1,2,3 and 4)
(J1)
SATA2 hard drive
connectors 1,2, and 3
for system board 1
(from top to bottom)
Hard-drive
backplane
cable
mini-SAS connector for
system board 3 and 4
(hard drive 1,2,3 and 4)
(J3)
SATA2 hard drive
connectors 1,2, and 3
for system board 3
(from top to bottom)
