Removing the 1GbE Mezzanine Card
NOTE: The 1GbE mezzanine card is seated in PCI-E Gen3 x8 mezzanine slot 3 on
the system board, which is not active in 1-processor configuration. See “System
Board Connectors” on page 294 for the location.
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came with
the product.
1 Remove the system-board assembly. See “Removing a System-Board
Assembly" on page 142.
2 Disconnect all the cables from the 1GbE mezzanine card.
3 Remove the screws that secure the expansion-card bracket. See Figure
3-46 for 1U node. See Figure 3-17 for 2U node.
4 Lift the expansion-card bracket out of the system-board assembly. See
Figure 3-46 for 1U node. See Figure 3-17 for 2U node.

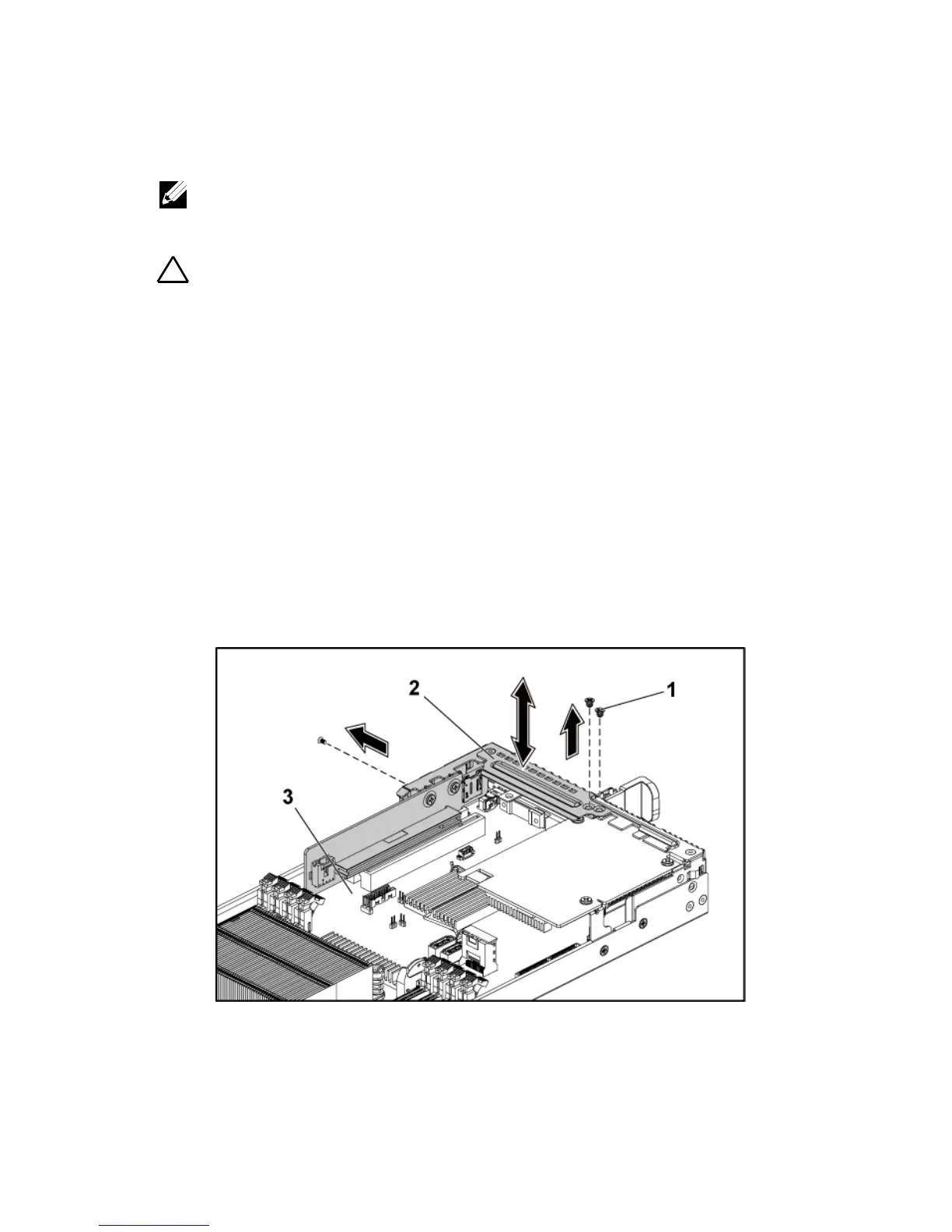

Figure 3-46. Removing and Installing the Expansion-Card Bracket
