200 | Installing System Components
5 Remove the screws that secure the 1GbE mezzanine card assembly.
See Figure 3-47.
6 Lift the 1GbE mezzanine card assembly away from the card bridge
board on the system board. See Figure 3-47.

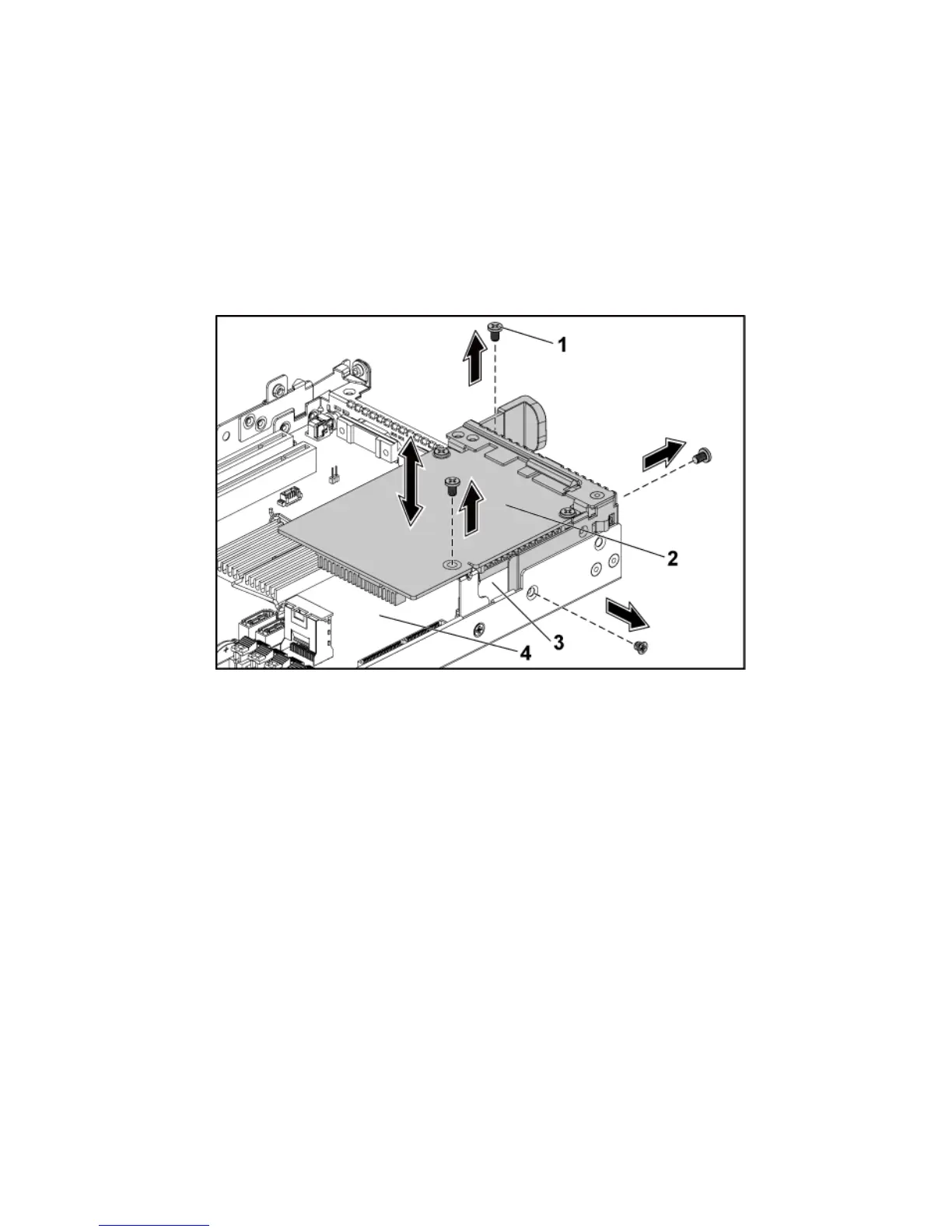

Figure 3-47. Removing and Installing the 1GbE mezzanine card assembly
1
screw (4)
2
1GbE mezzanine card assembly
3
card bridge board
4
system-board assembly
