246 | Installing System Components

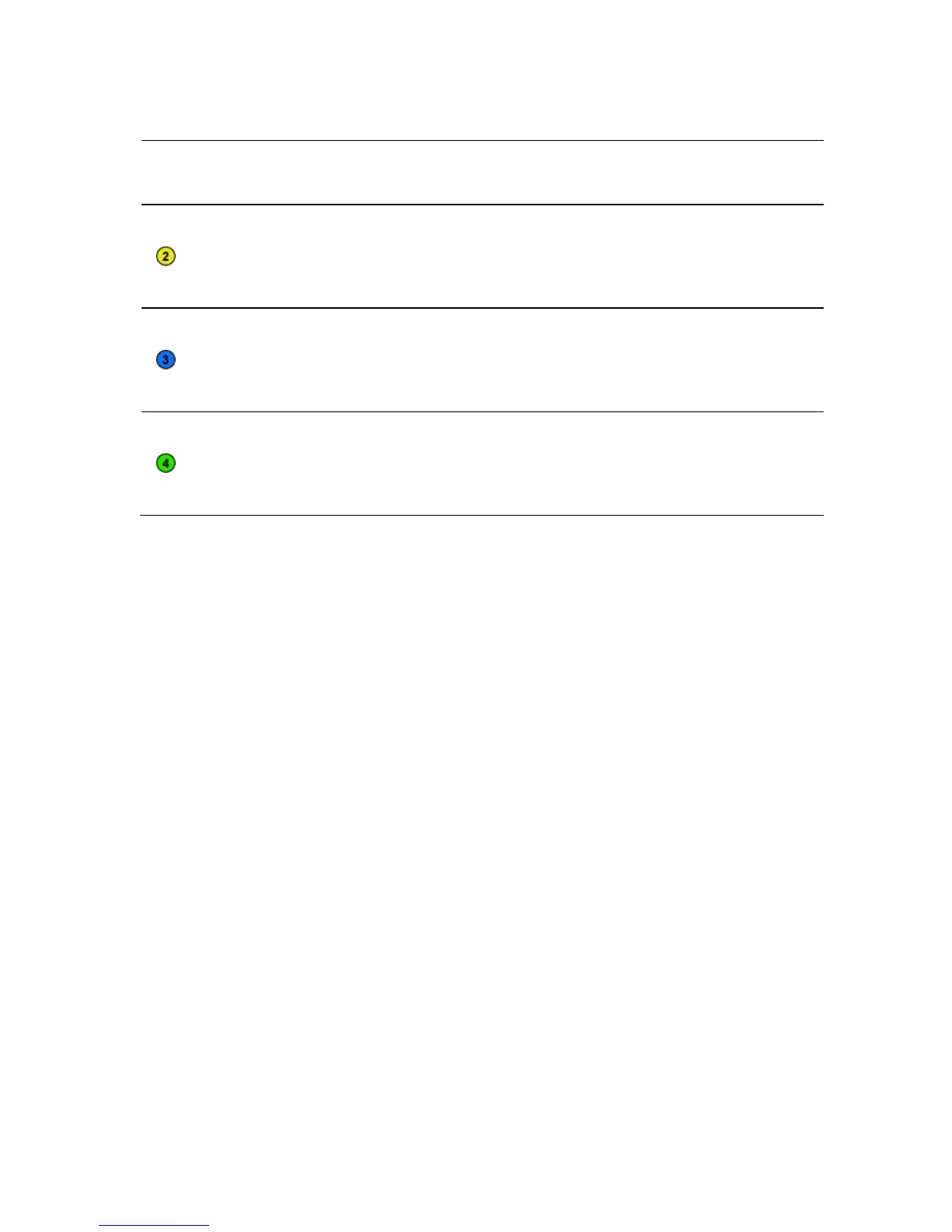

Item
Cable
From
(Bottom Middle Plane)
To
(Direct Backplane)
Hard-drive
backplane
cable
mini-SAS connector for
system board 1 and 2
(hard drive 5 and 6) (J2)
SATA2 hard drive
connectors 5 to 6 for
system board 2 (from
right to left)
Hard-drive
backplane
cable
mini-SAS connector for
system board 3 and 4
(hard drive 1,2,3 and 4)
(J3)
SATA2 hard drive
connectors 1 to 4 for
system board 4 (from
right to left)
Hard-drive
backplane
cable
mini-SAS connector for
system board 3 and 4
(hard drive 5 and 6) (J4)
SATA2 hard drive
connectors 5 to 6 for
system board 4 (from
right to left)
