11 Remove the screws that secure the backplane for expander
configuration to the hard-drive cage. See Figure 3-92
12 Remove the backplane for expander configuration from the hard-drive
cage. See Figure 3-92

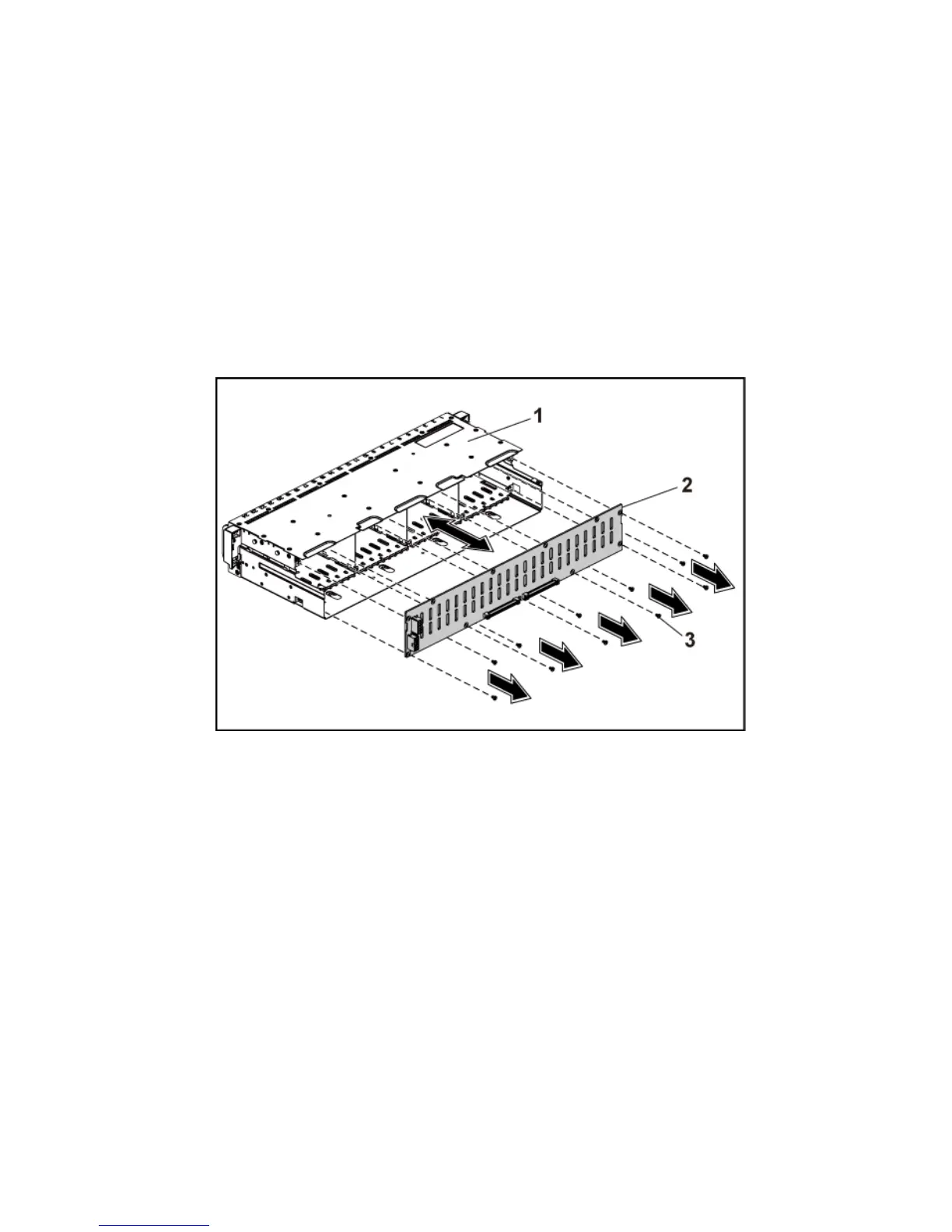

Figure 3-92. Removing and Installing the Backplane for Expander Configuration
From the Hard-Drive Cage
1
hard-drive cage
2
2.5-inch hard-drive backplane
for Expander Configuration
3
screw (11)
