Dell PowerEdge C6220 - Page 277

Installing System Components | 277

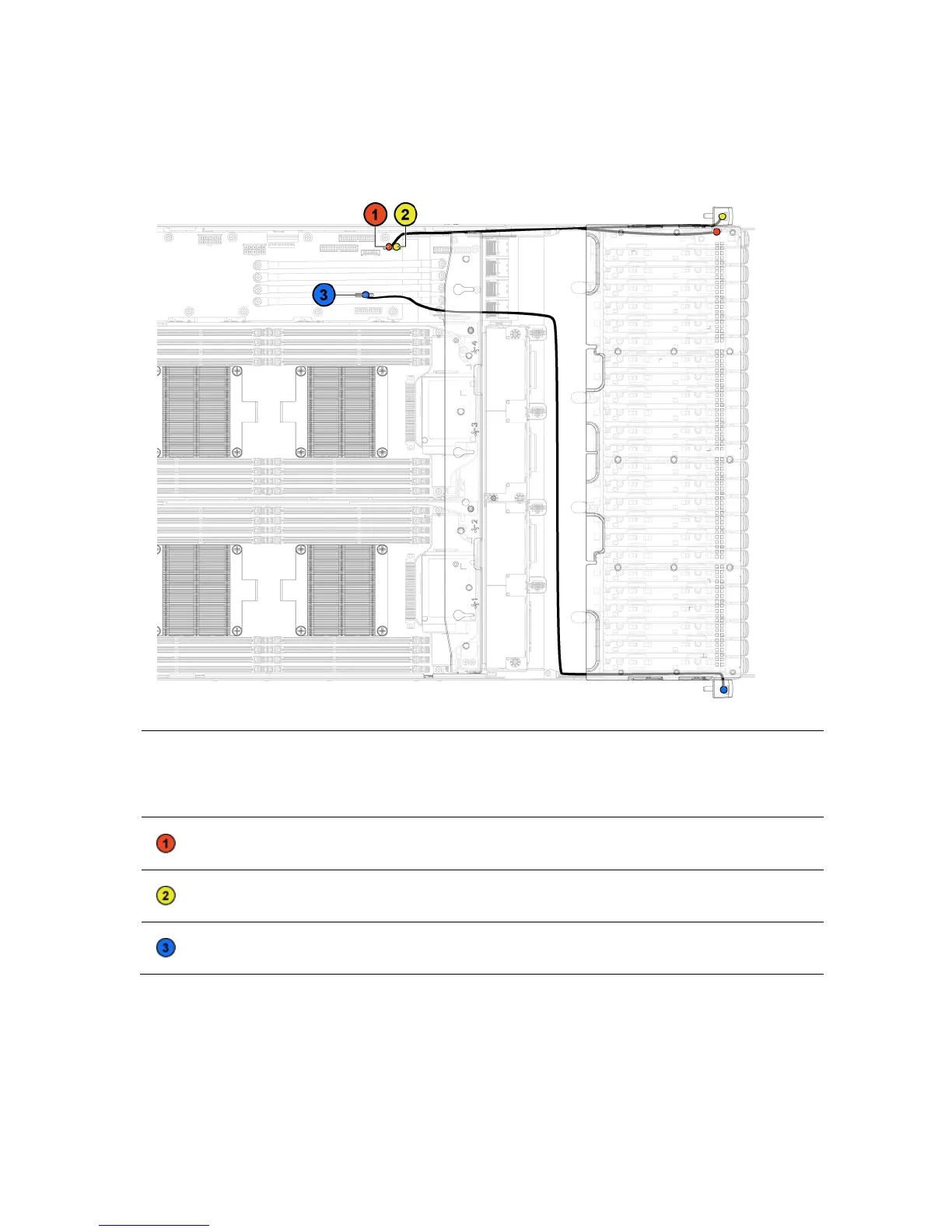

Figure 3-99. Cable Routing−Sensor Board and Front Panel
Item
Cable
From
(Power Distribution Board)
To
(Sensor Board and Front
Panels)
Sensor board
cable
Sensor board power
connector (J1)
Sensor Board
Front panel
cable
Front panel connector
(J16)
Front Panel 2
Front panel
cable
Front Panel connector
(J18)
Front panel 1
