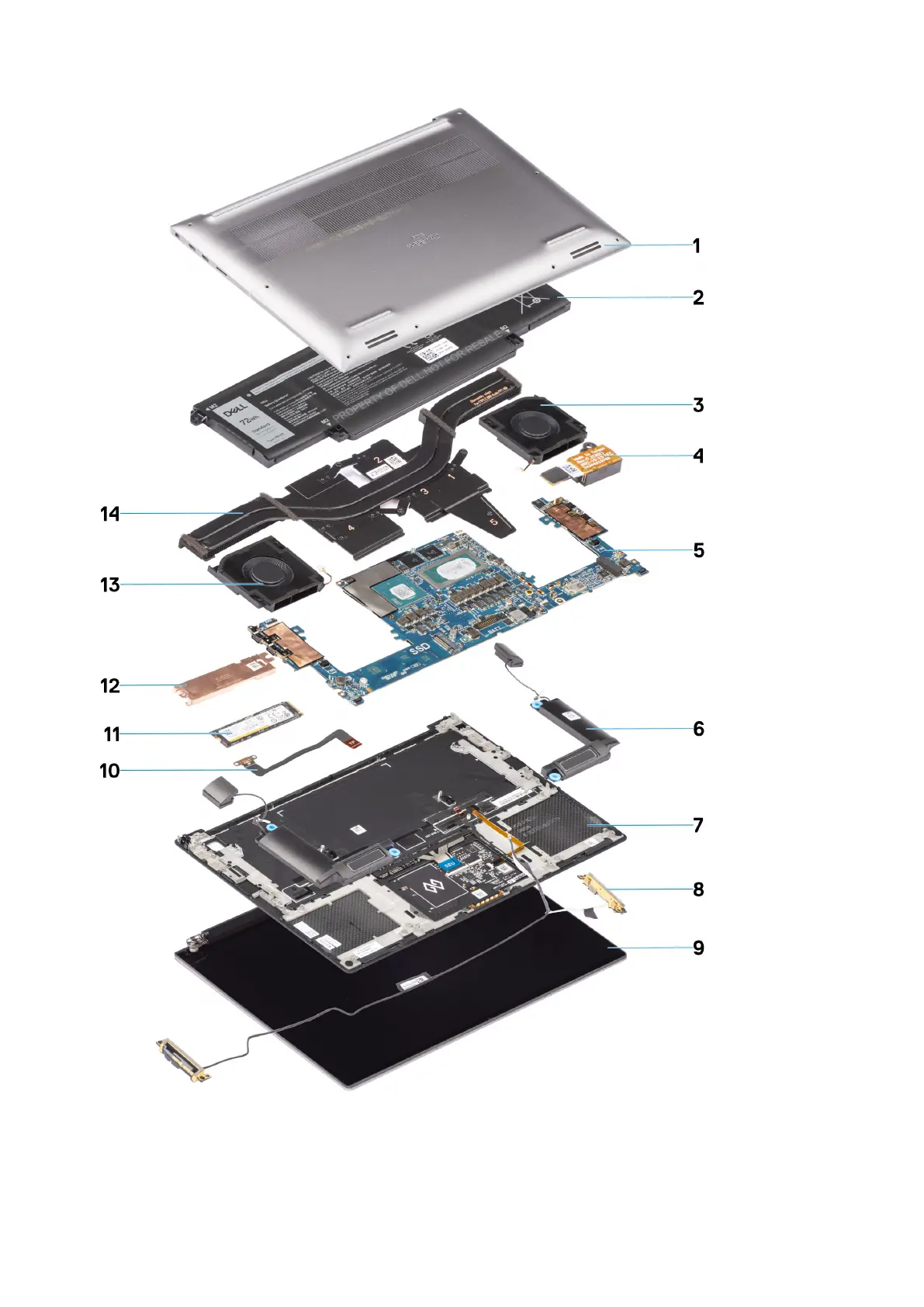

1. Base cover 2. Battery
3. Right fan 4. Audio jack
5. System board 6. Speakers
7. Palm-rest 8. WLAN antennas
12 Removing and installing components
