Steps

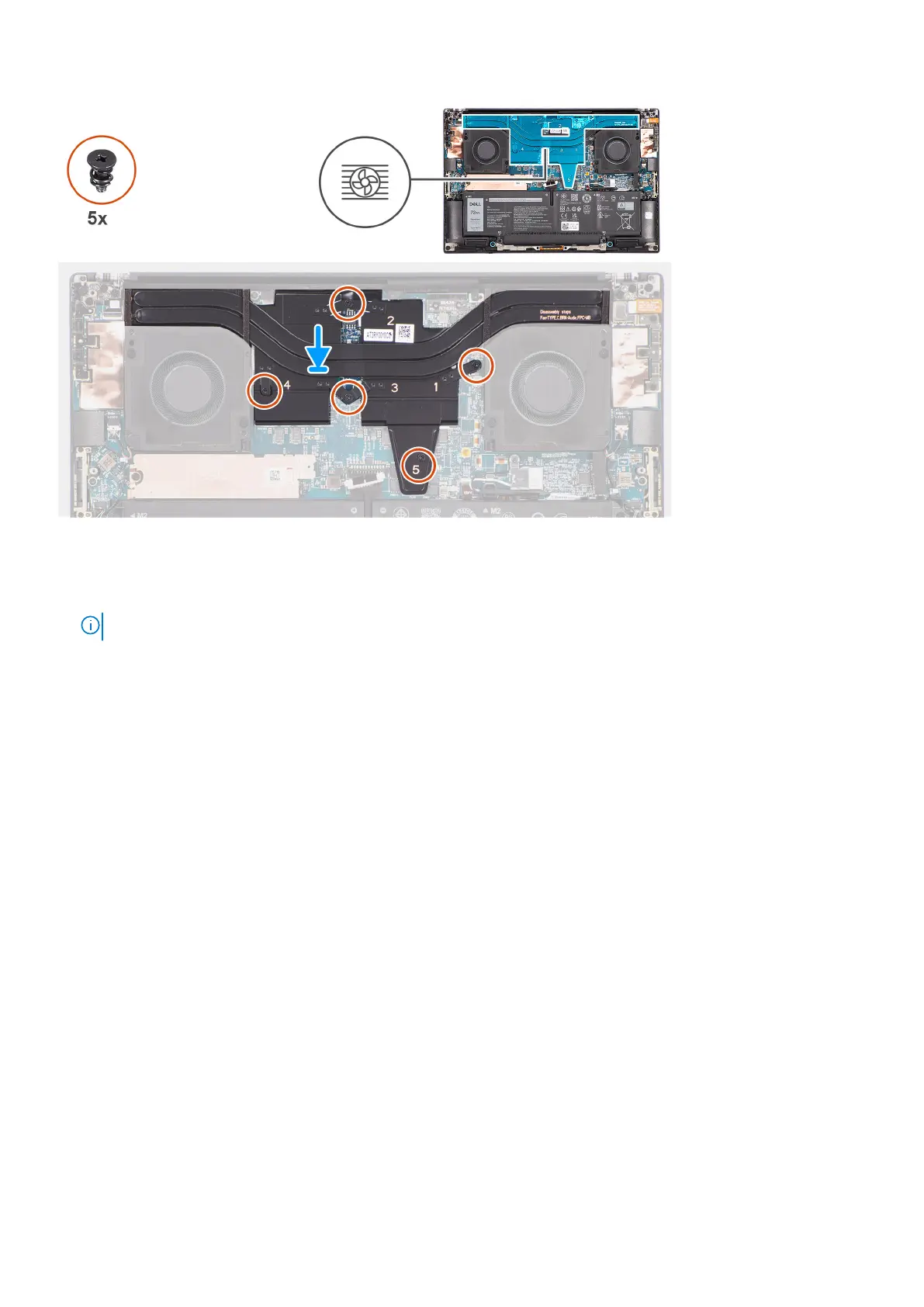

1. Align and insert the heat-sink into its slot on the system board.
2. Tighten the five captive screws that secure the heat-sink to the system board.
NOTE: Loosen the captive screws in the order that is marked on the heat-sink next to the screws [1 > 2 > 3 > 4 > 5].
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Audio jack
Removing the audio jack
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following images indicate the location of the audio jack and provide a visual representation of the removal procedure.
