9. Display assembly 10. Touchpad flat printed cable
11. Memory module 12. Solid-state drive shield
13. Left fan 14. Heat-sink discrete
NOTE: Dell provides a list of components and their part numbers for the original system configuration purchased. These
parts are available according to warranty coverages purchased by the customer. Contact your Dell sales representative for
purchase options.
Base cover
Removing the base cover
Prerequisites
1. Follow the procedure in before working inside your computer.
About this task

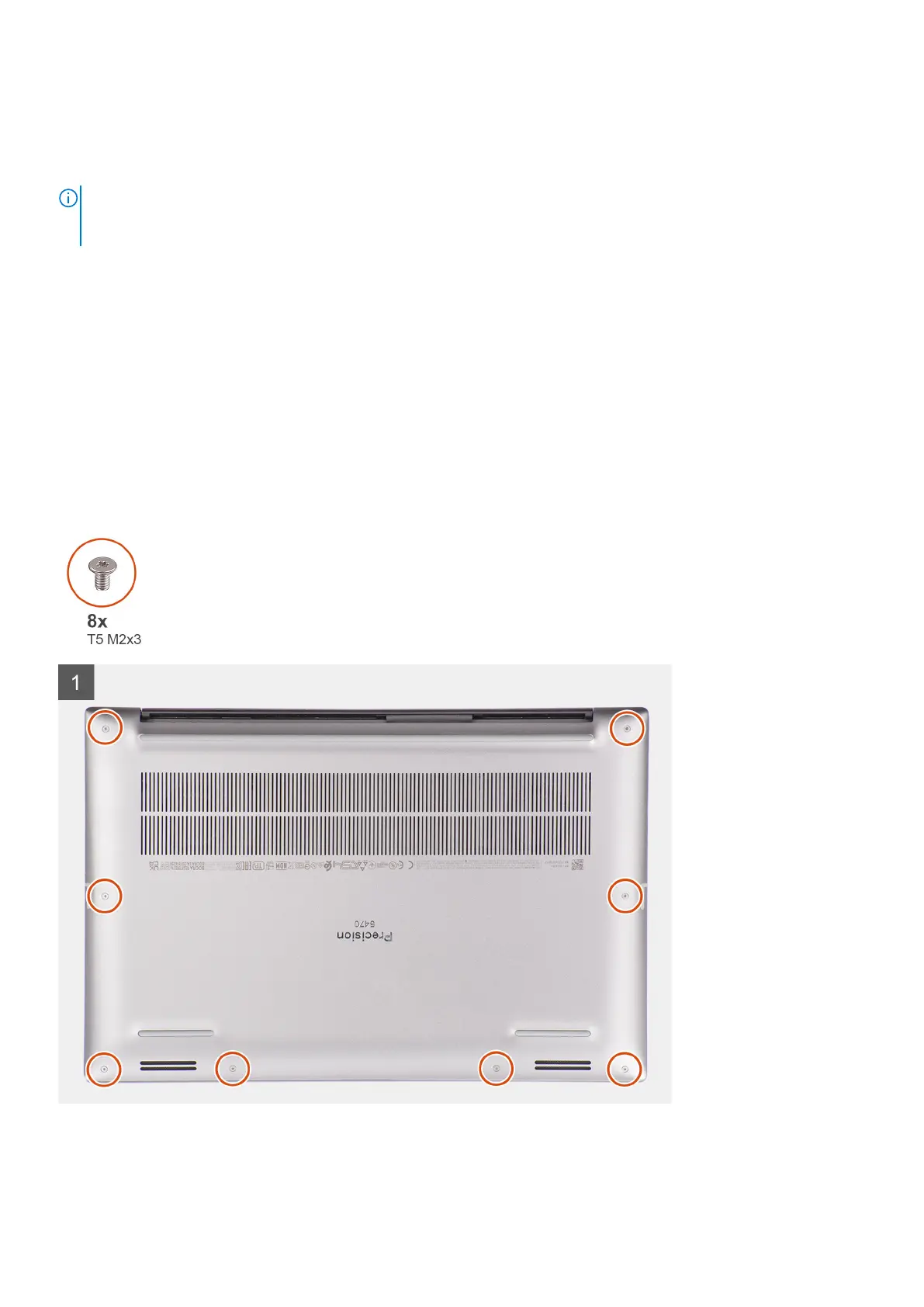

The figure indicates the location of the base cover and provides a visual representation of the removal procedure.
Removing and installing components 13
