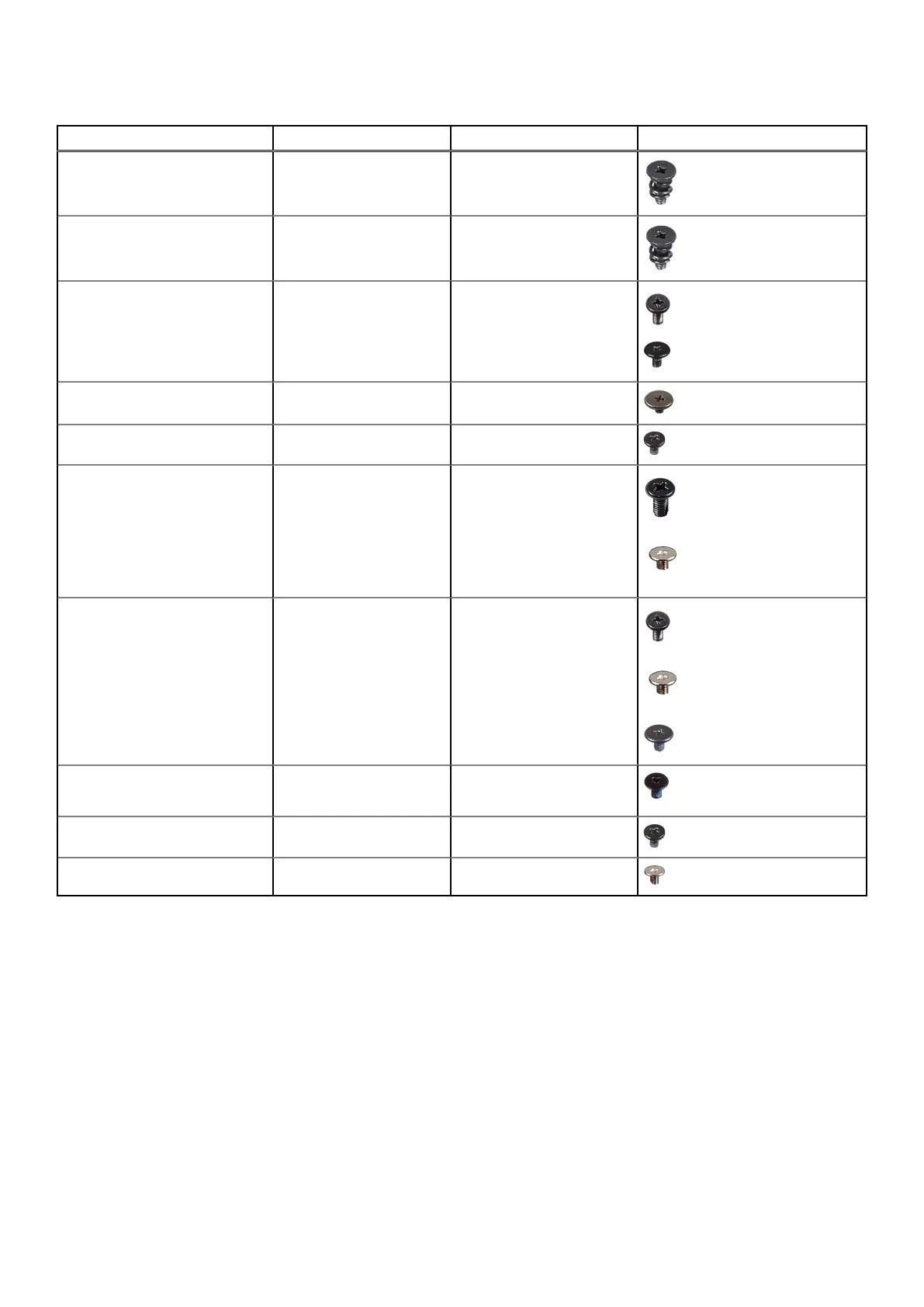

Table 1. Screw list (continued)
Component Screw type Quantity Screw image
Heat-sink for integrated
graphics
Captive screw 4
Heat-sink for discrete graphics Captive screw 5
Audio jack M2x4
M1.6x3
3
1
Speakers M1.6x1.8 2
Smart-card reader M1.6x1.7 2
Display assembly M2.5x5
T5, M1.4x4
6
4
System board M2x4
T5, M1.4x4
M1.6x2.3
6
4
1
Power button board with
fingerprint reader
M1.6x2 3
USH board M1.4x1.2 2
WLAN antennas M1.4x2.5 4
Major components of Precision 5470
The following image shows the major components of Precision 5470.
