4. Replace the (M2x2) screw that secures the SSD thermal plate to the M.2 2230 solid state drive bracket.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Removing the M.2 2280 solid state drive
Prerequisites
NOTE: For computers shipped with M.2 2280 solid state drive.
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task

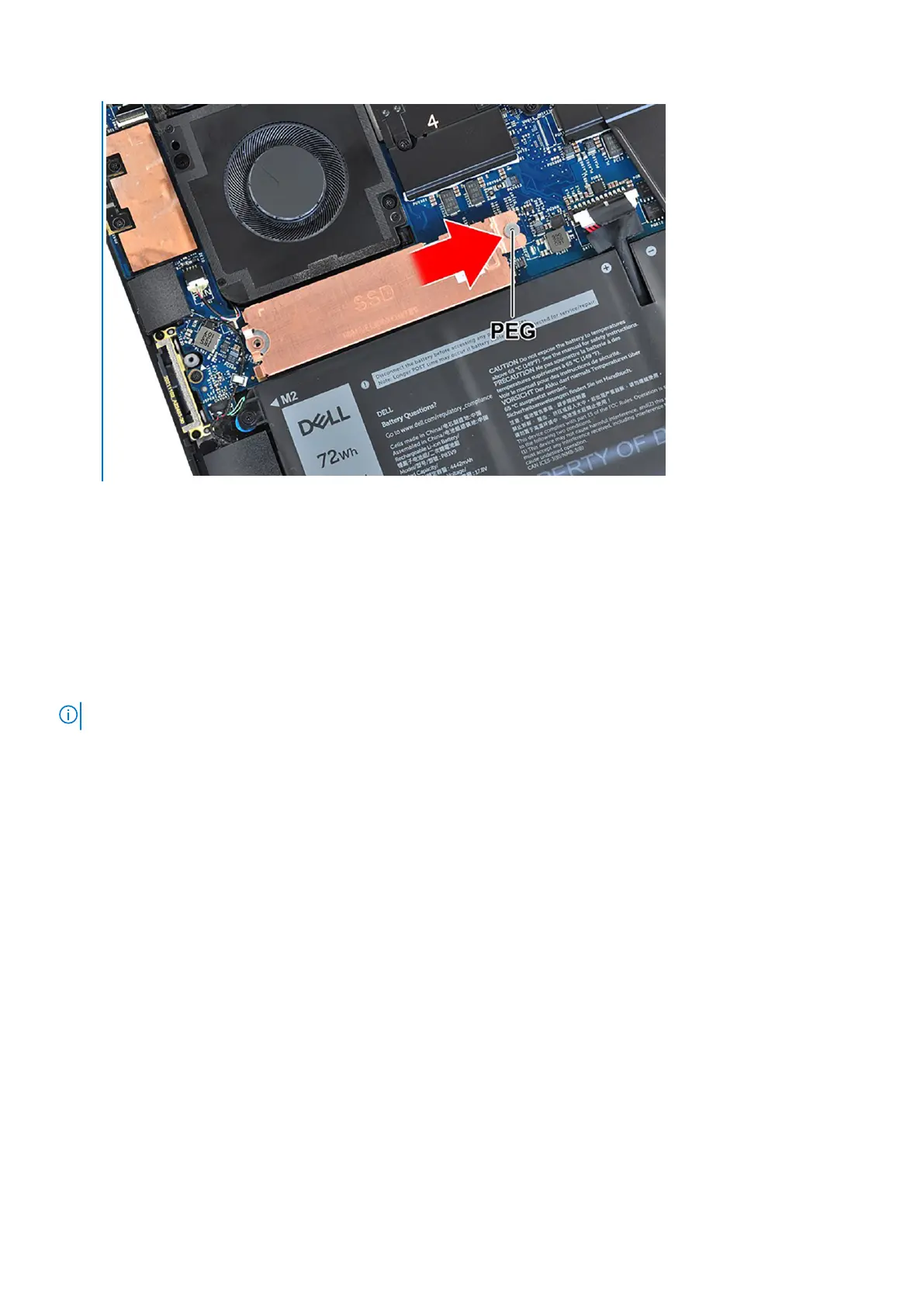

The figure indicates the location of the M.2 2280 solid state drive and provides a visual representation of the removal
procedure.
Removing and installing components
19
