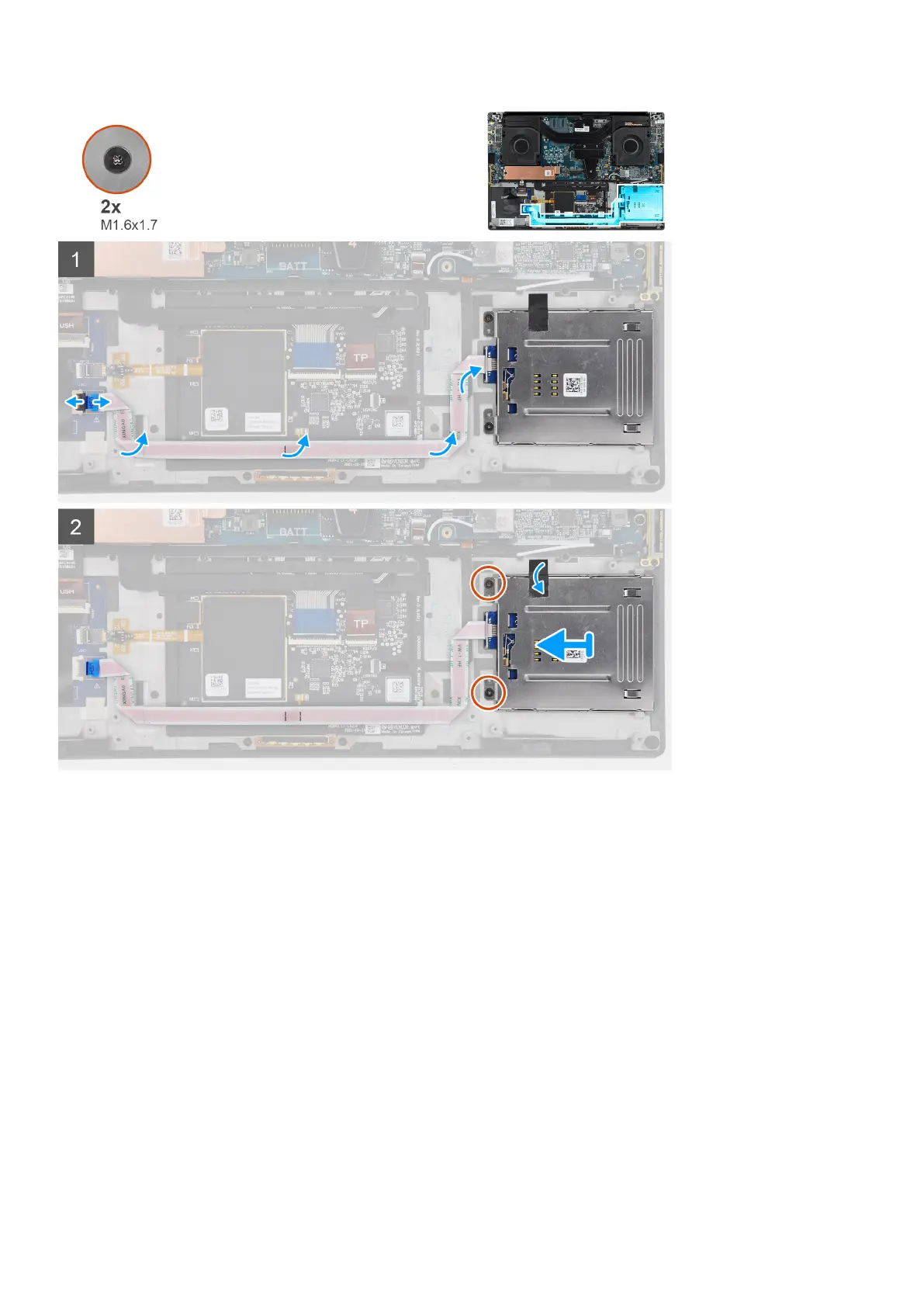

Steps
1. Disconnect the smart-card reader FFC from the connector on the USH board.
2. Peel the smart-card reader FFC from the palmrest and keyboard assembly.
3. Remove the two (M1.6x1.7) screws that secure the smart-card reader to the computer.
4. Peel the adhesive and remove the smart-card reader from the computer.
Installing the smart-card reader
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the smart-card reader and provides a visual representation of the installation procedure.
Removing and installing components
39
