4. Remove the two (M1.6x1.8) screws that secure the left and right speakers to the palm-rest and keyboard assembly.
5. Lift to remove the left and right speakers from the palm-rest and keyboard assembly.
Installing the speaker
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

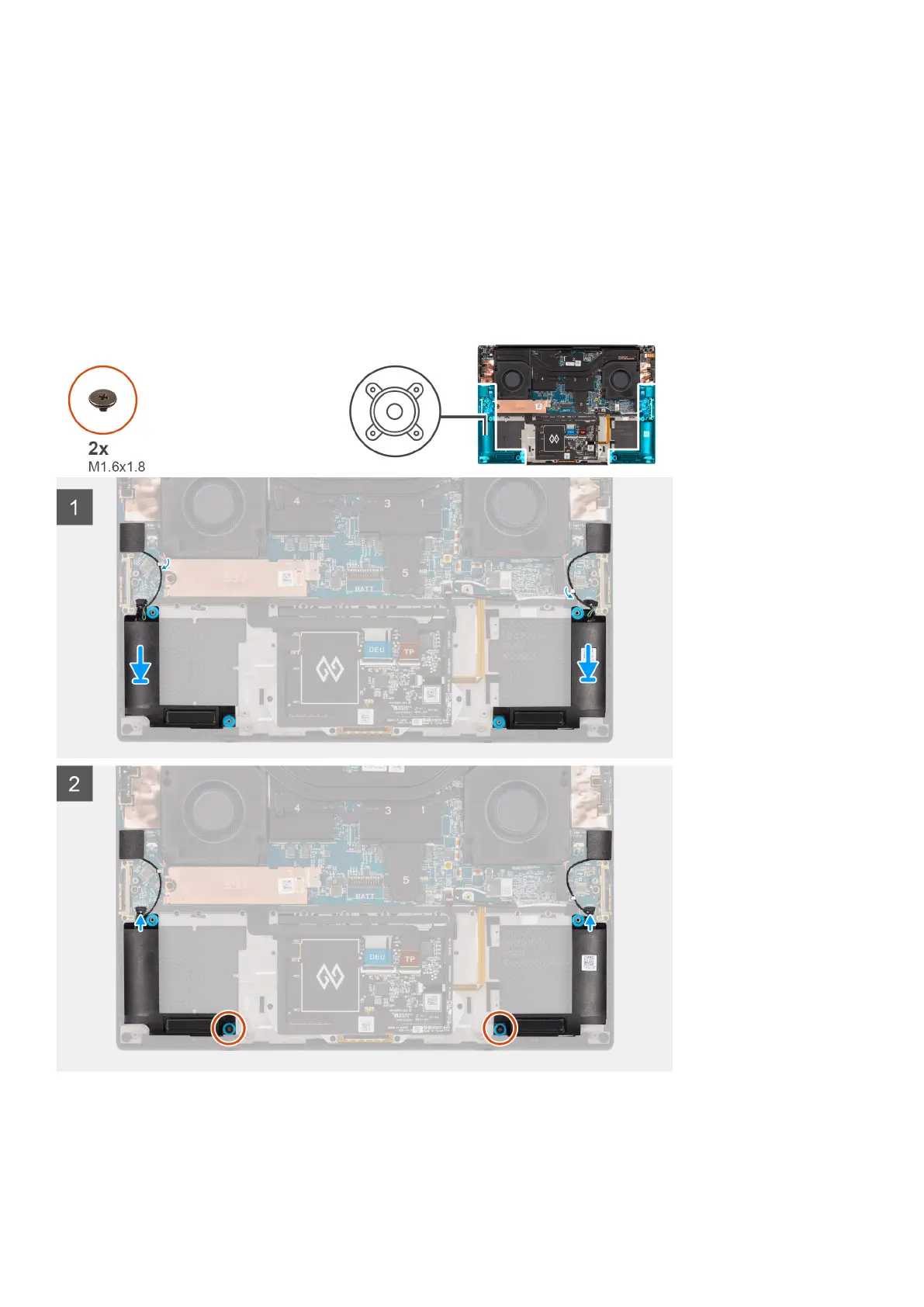

The figure indicates the location of the speakers and provides a visual representation of the installation procedure.
Steps
1. Align and place the left and right speakers into its slot on the palm-rest and keyboard assembly.
2. Reroute the left and right tweeter speakers using the routing guides on the system board.
Removing and installing components
37
