Steps

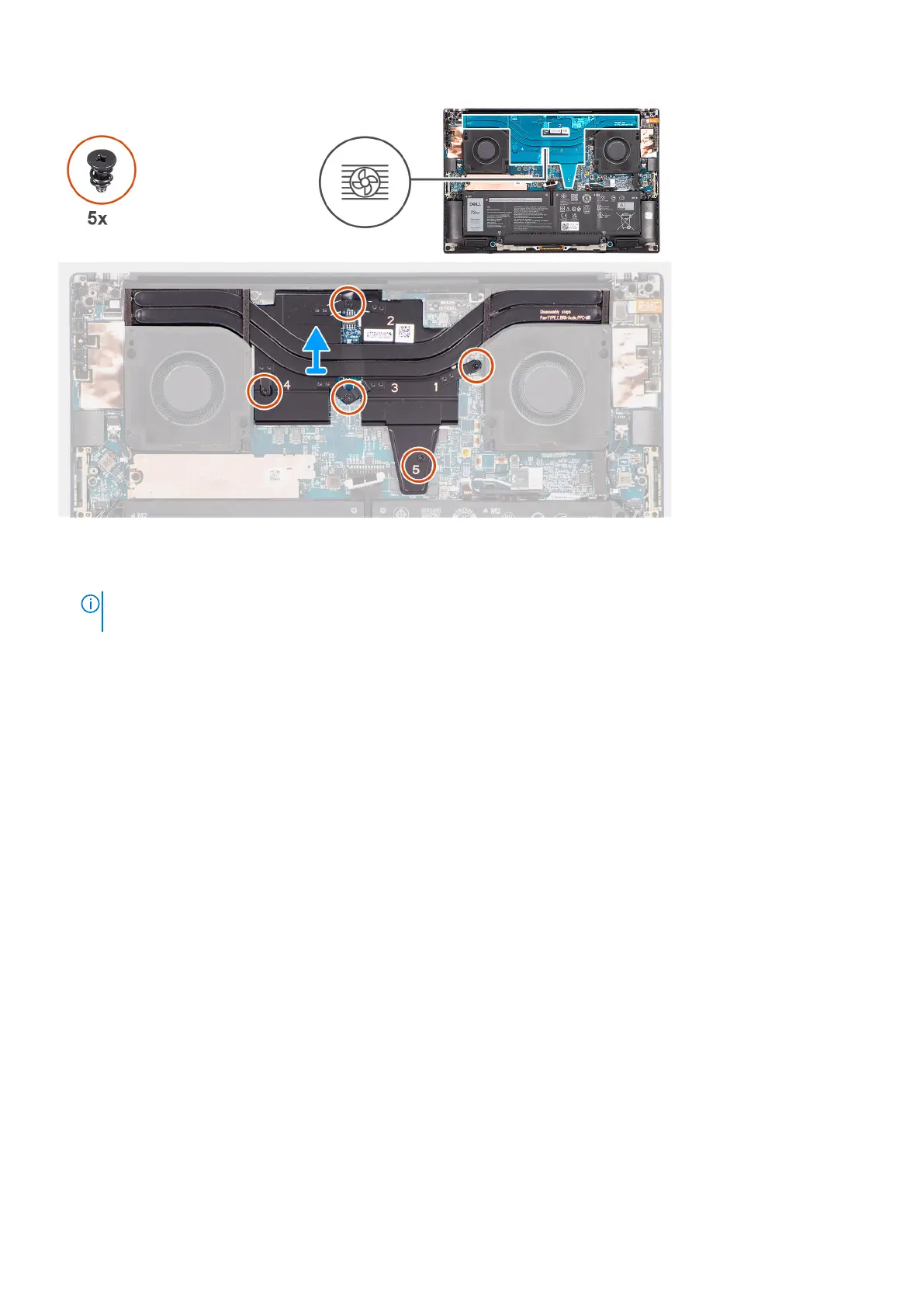

1. Loosen the five captive screws that secure the heat-sink to the system board.
NOTE:
Loosen the captive screws in the order that is marked on the heat-sink assembly next to the screws [5 > 4 > 3 >
2 > 1].
2. Carefully lift the heat-sink to remove it from the system board.
Installing the heat-sink for discrete graphics
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the heat-sink and provides a visual representation of the installation procedure.
32
Removing and installing components
