Speakers
Removing the speaker
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task

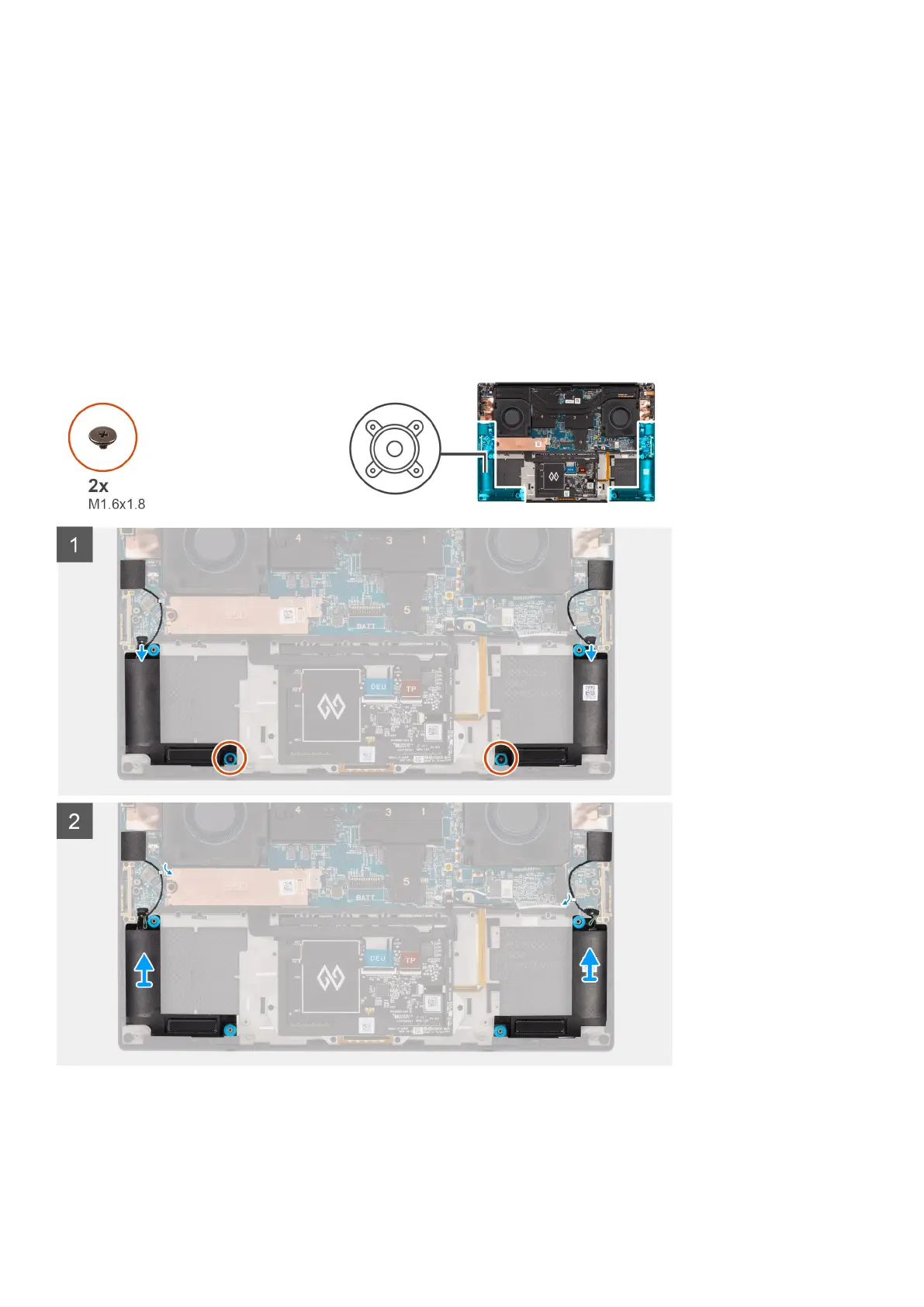

The figure indicates the location of the speaker and provides a visual representation of the removal procedure.
Steps
1. Disconnect the left and right speaker cables from the system board.
2. Peel the left and right tweeter speakers from their compartments on the palm-rest and keyboard assembly.
3. Unroute the left and right tweeter speakers from their routing guides on the system board.
36
Removing and installing components
