Steps

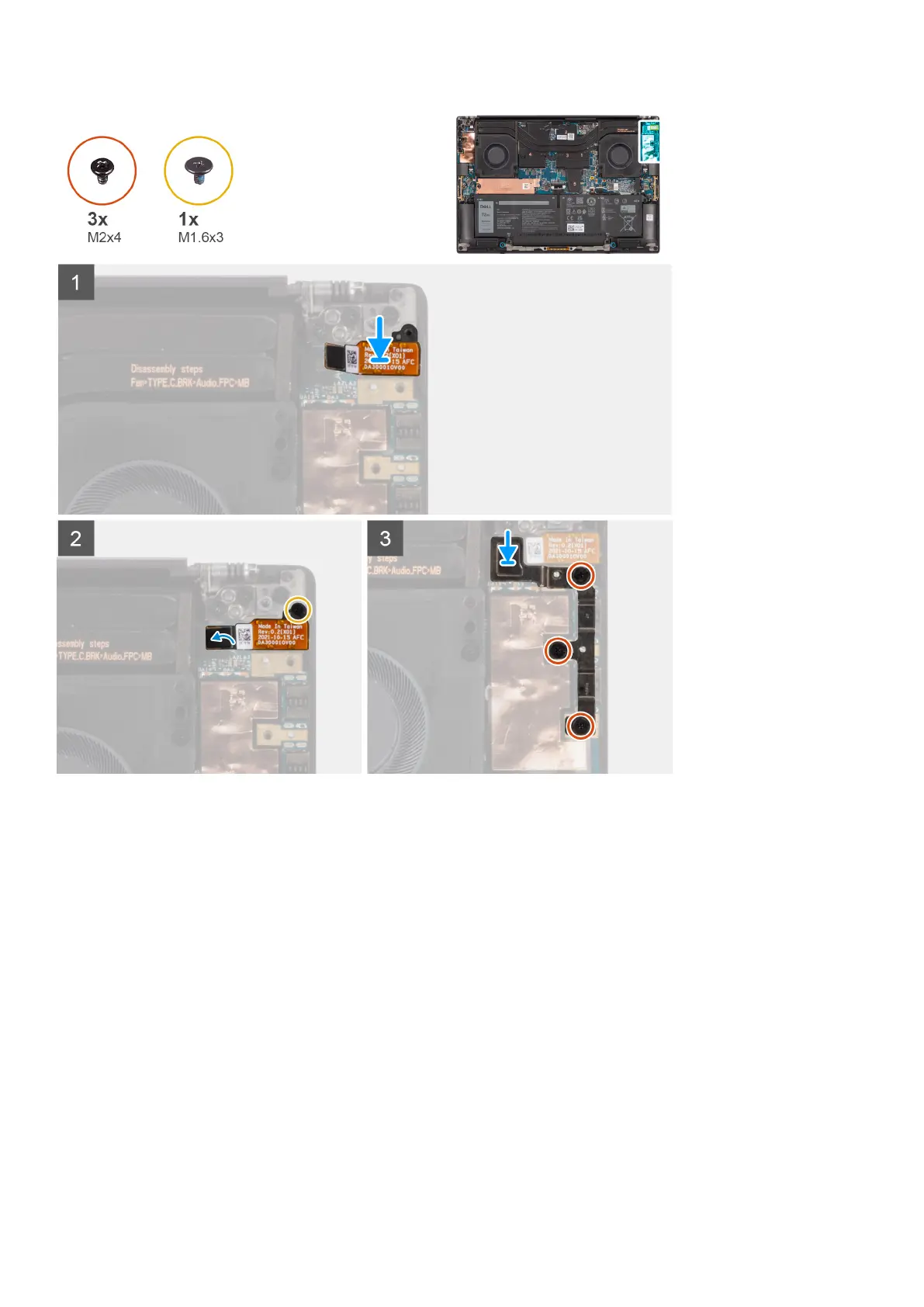

1. Align and place the audio jack in its slot on the palm-rest and keyboard assembly.
2. Connect the audio jack FPC to its connector on the system board.
3. Replace the (M1.6x3) screw to secure the audio jack to the system board.
4. Align and place the left USB Type-C bracket on the system board.
5. Replace the three (M2x4) screws that secure the left USB Type-C bracket to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Removing and installing components
35
