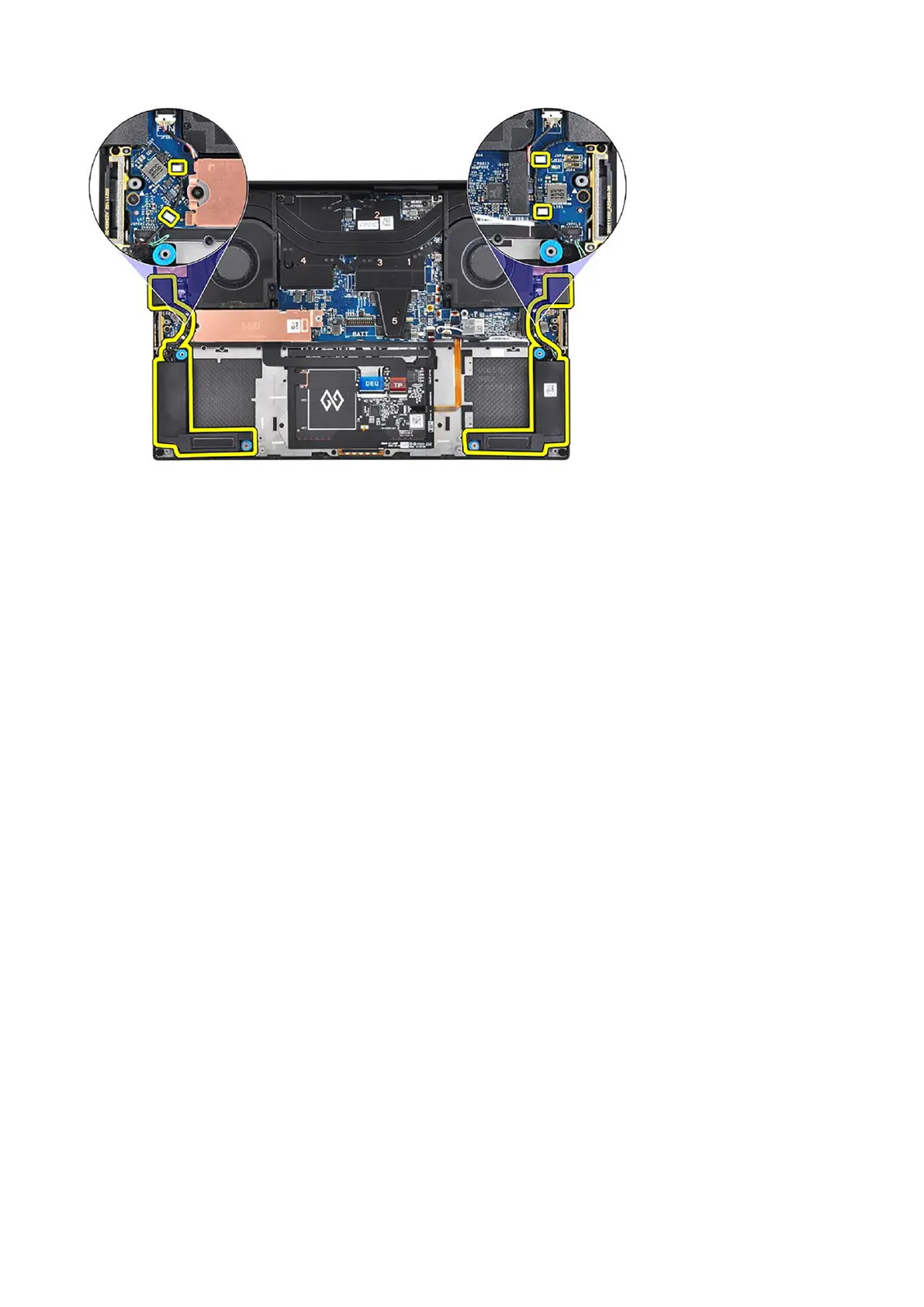

3. Replace the two (M1.6x1.8) screws that secure the left and right speakers to the palm-rest and keyboard assembly.
4. Connect the left and right speaker cables to the system board.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Smart-card reader
Removing the smart-card reader
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the speakers.
About this task
The figure indicates the location of the smart-card reader and provides a visual representation of the removal procedure.
38
Removing and installing components
