Steps

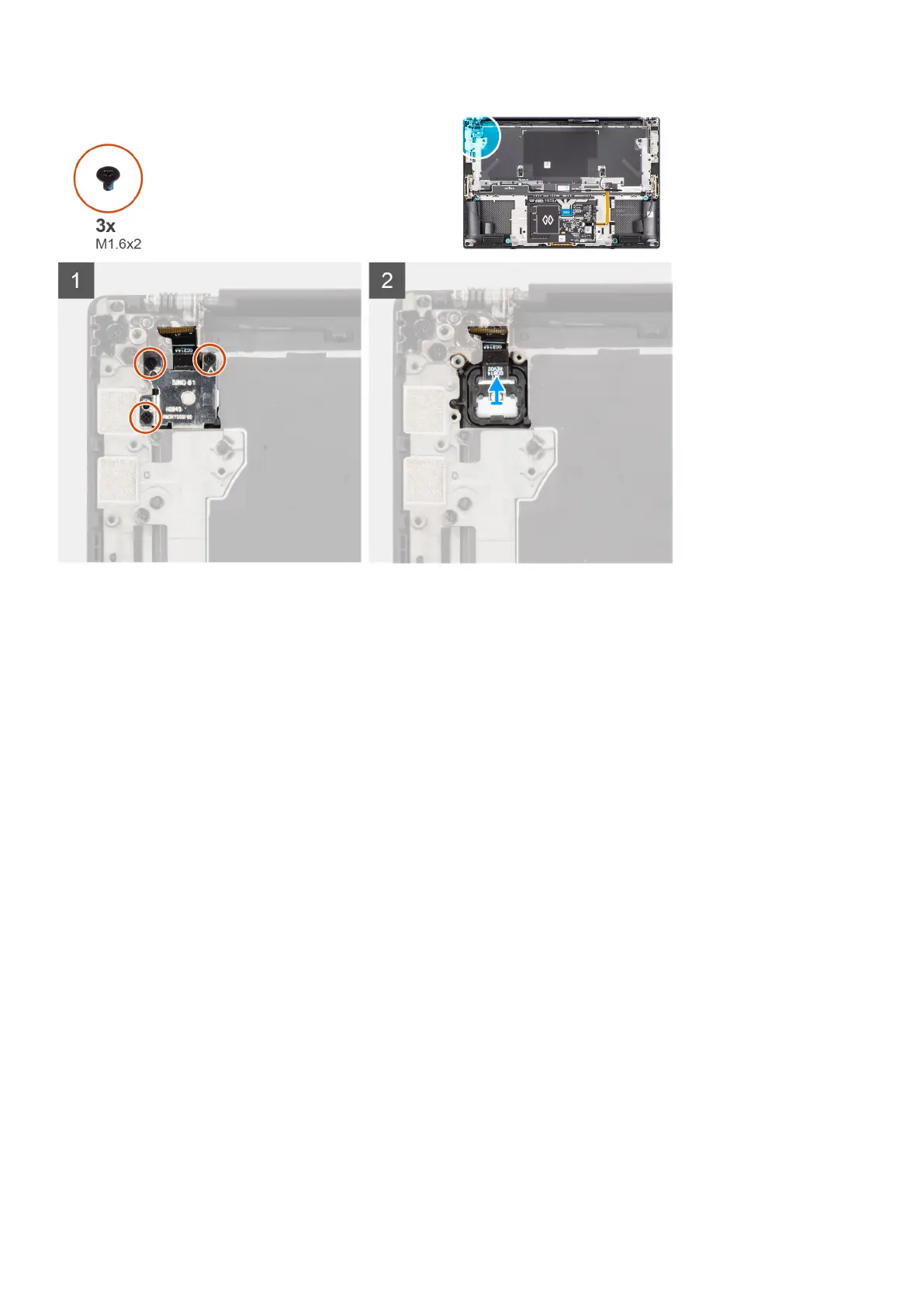

1. Remove the three (M1.6x2) screws that secure the fingerprint reader bracket to the power button board.
2. Remove the fingerprint reader from the power button board.
3. Remove the power button board with power button FPC from the palm-rest and keyboard assembly.
Installing the power button board assembly with fingerprint reader
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the power button assembly with fingerprint reader and provides a visual representation of
the installation procedure.
