Steps
1. Remove the (M2x2) screw that secures the SSD thermal plate to the M.2 2280 solid state drive.
2. Lift to remove the SSD thermal plate.
3. Lift the M.2 2280 solid state drive at an angle and slide to remove from its slot on the system board.
Installing the M.2 2280 solid state drive
Prerequisites
NOTE: For computers shipped with M.2 2280 solid state drive.
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

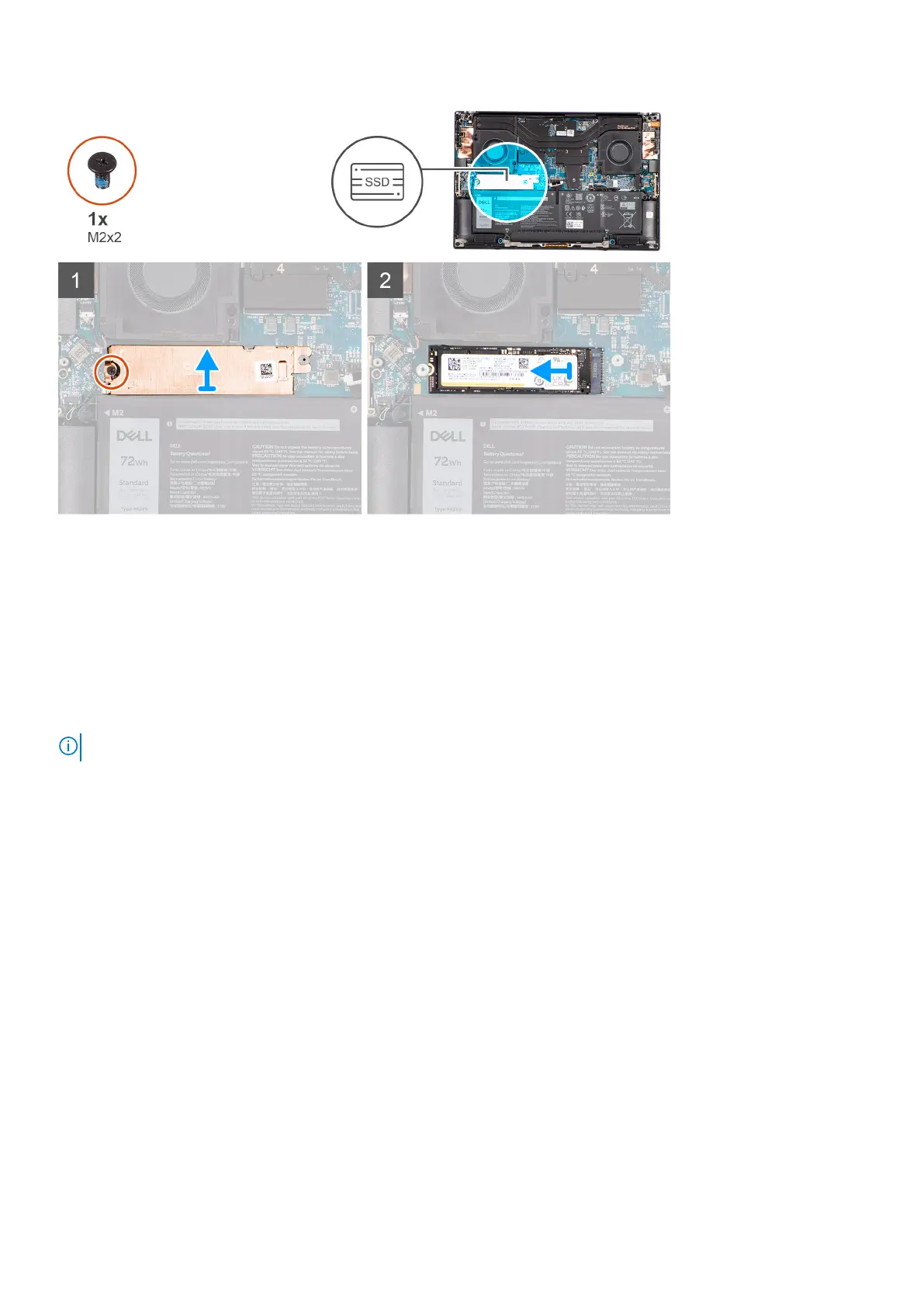

The figure indicates the location of the M.2 2280 solid state drive and provides a visual representation of the installation
procedure.
20
Removing and installing components
