Display assembly
Removing the display assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task

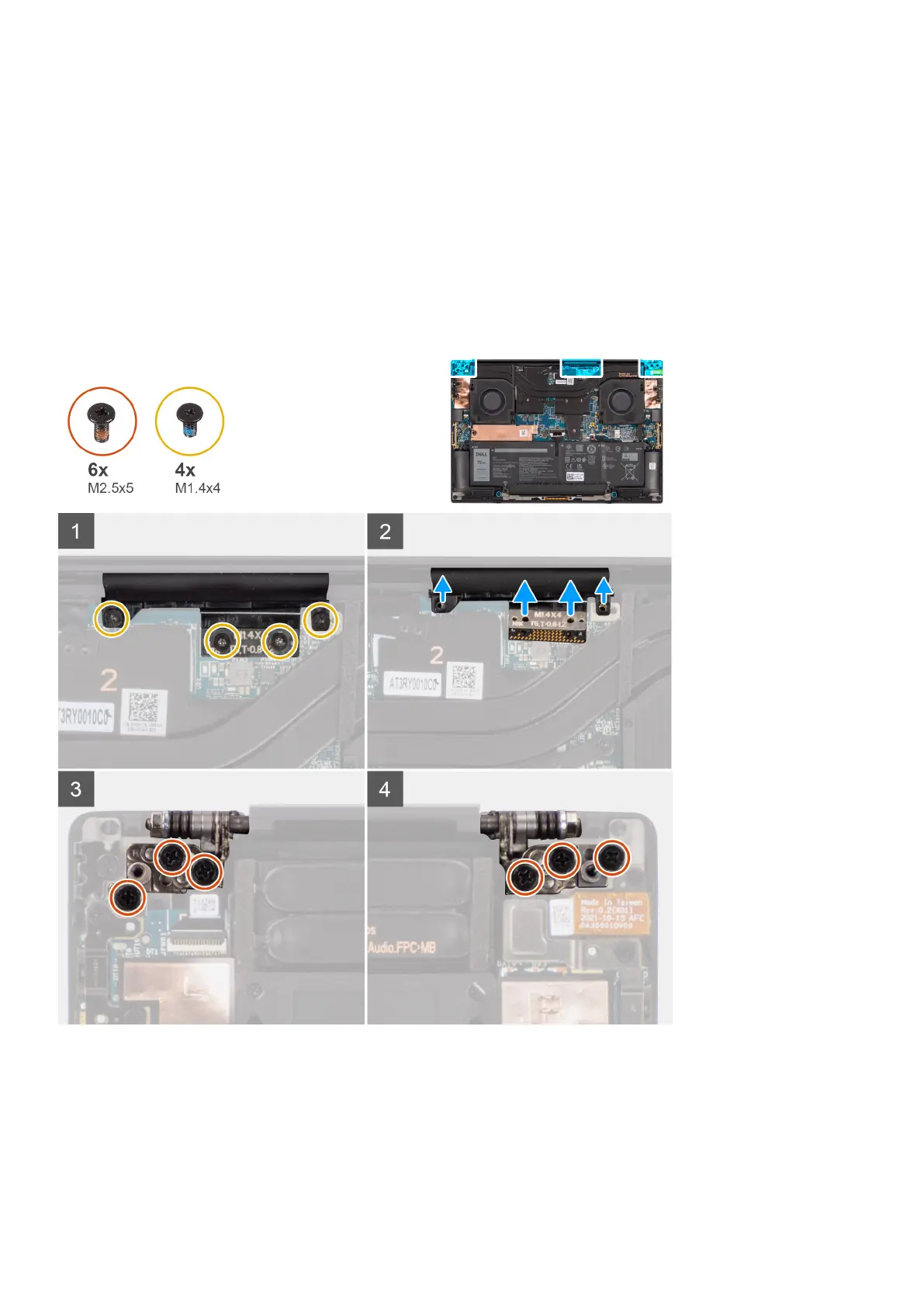

The figure indicates the location of the display assembly and provides a visual representation of the removal procedure.
Removing and installing components 41
