Steps

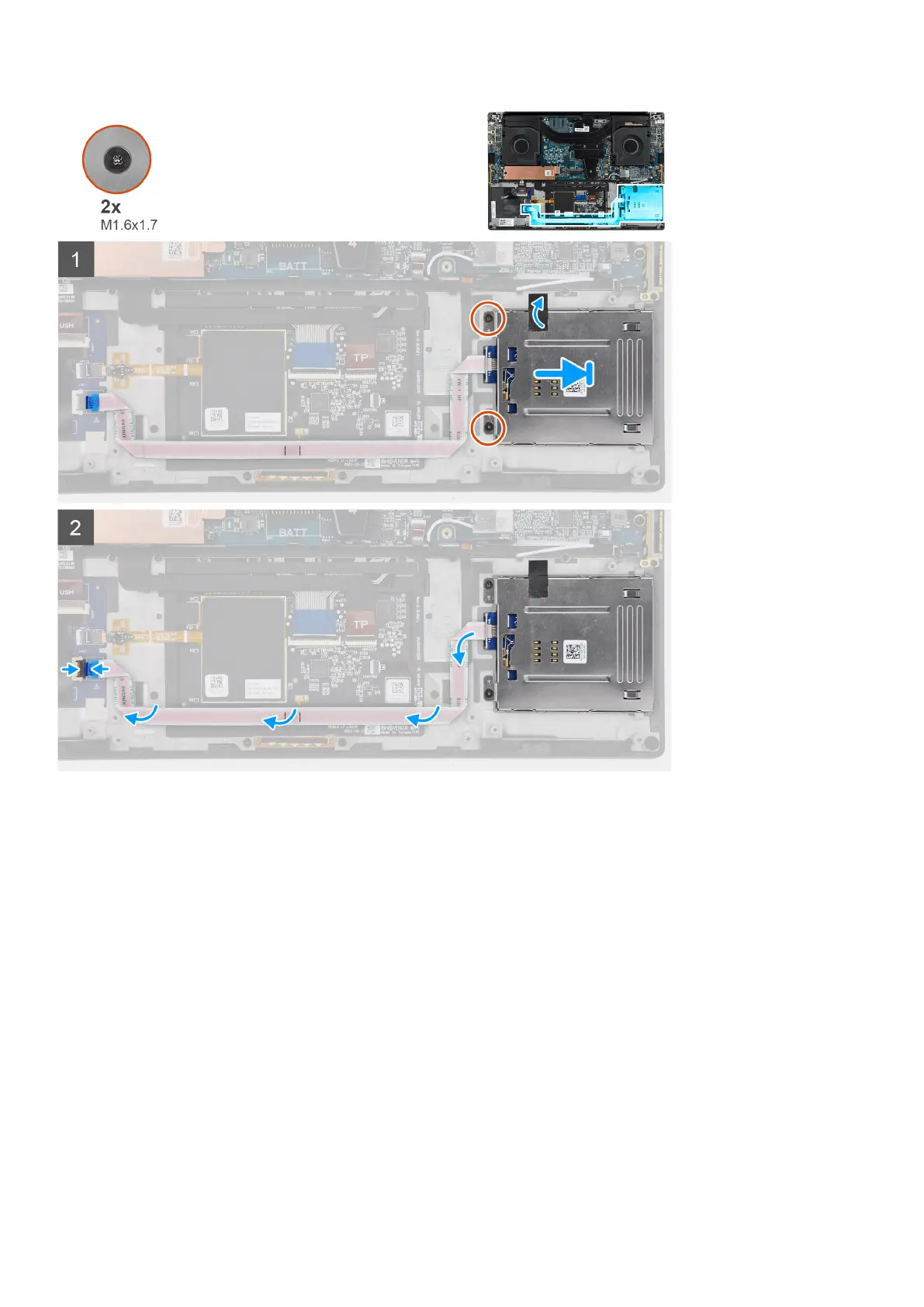

1. Align and place the smart-card reader into its slot on the computer.
2. Adhere the adhesive and replace the two (M1.6x1.7) screws to secure the smart-card reader in place.
3. Adhere the smart-card reader FFC to the palmrest and keyboard assembly.
4. Connect the smart-card reader FFC to the connector on the USH board.
Next steps
1. Install the speakers.
2. Install the battery.
3. Install the base cover.
4. Follow the procedure in after working inside your computer.
